Universal Bus connector Special Internal cable clamp

incl. VAT zzgl. Versandkosten

Version

Clear

SKU: N/A Category: Field Bus

Description

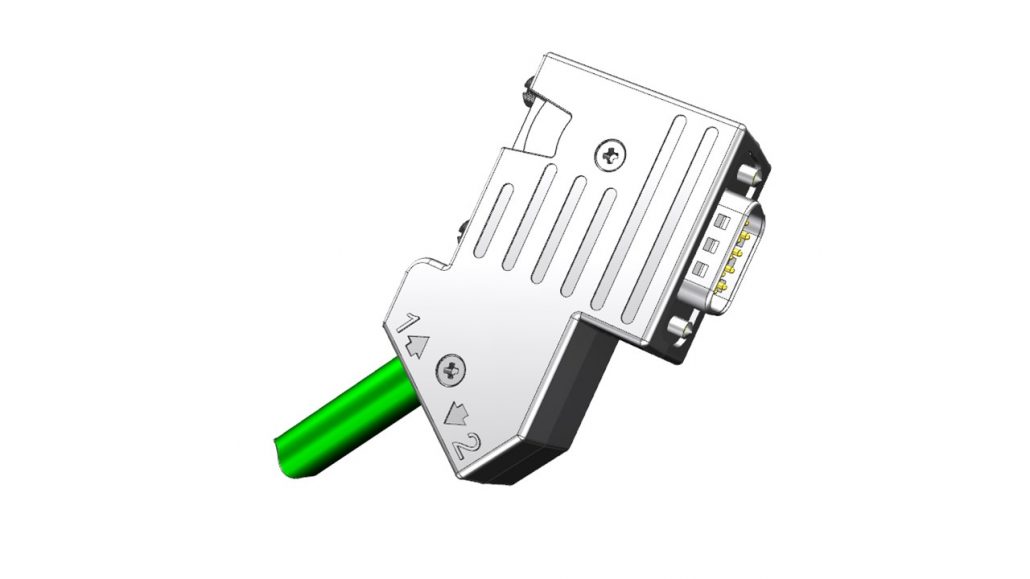

Universal Bus connector Special Internal cable clamp

Fully shielded with cable outlet 35° and 9 screw terminals

Technical Data

Bus-/ PG-interface	D-Sub 9-pole, pin/socket
Temperature range	-20° C to +70° C
Mechanical service life	200 mating cycles
Cable/conductor diameter	6,8 ± 0,3 + 8 ± 0,3 mm / 0,14 – 1 mm²

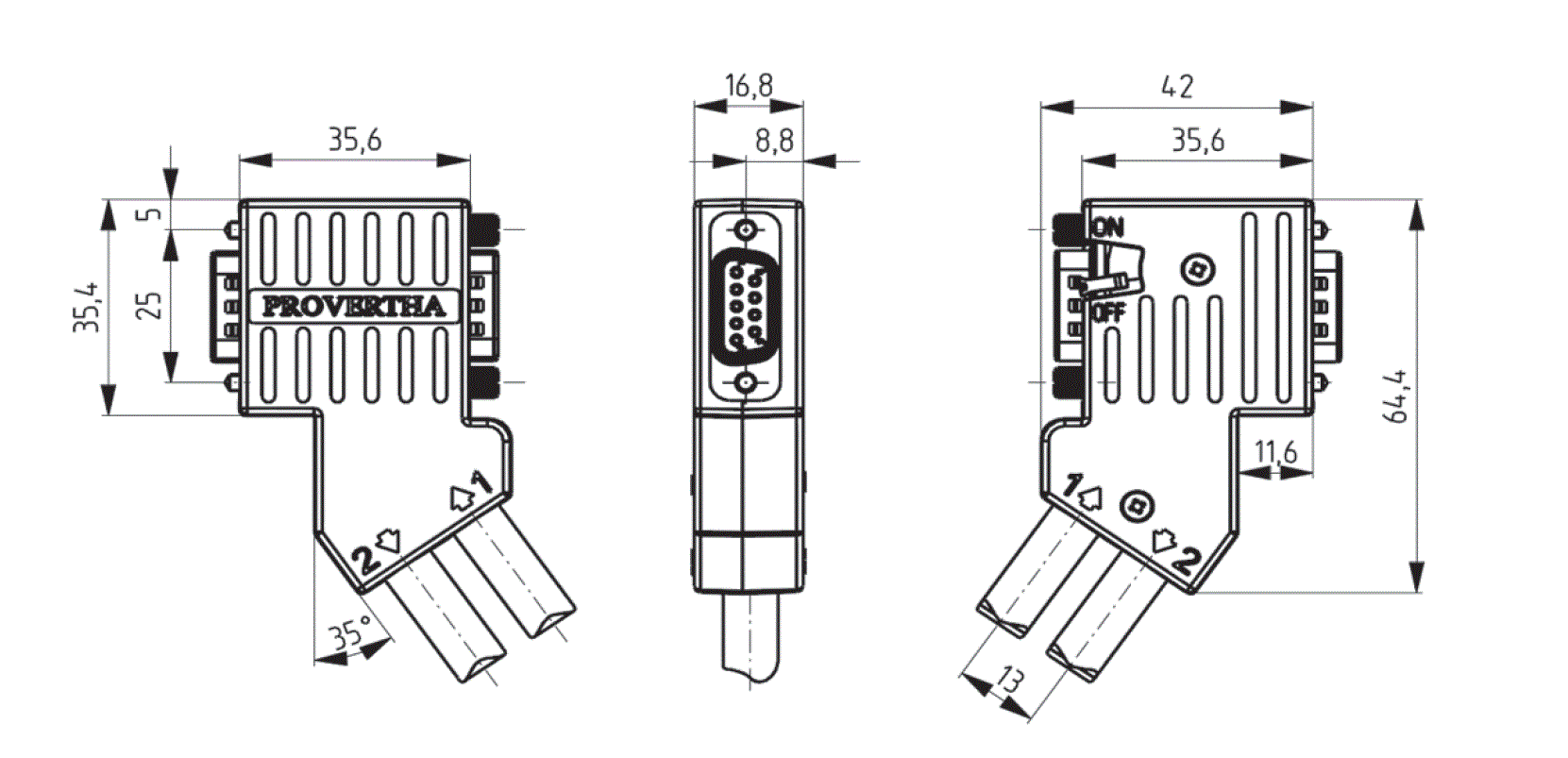

Dimensions
