Description

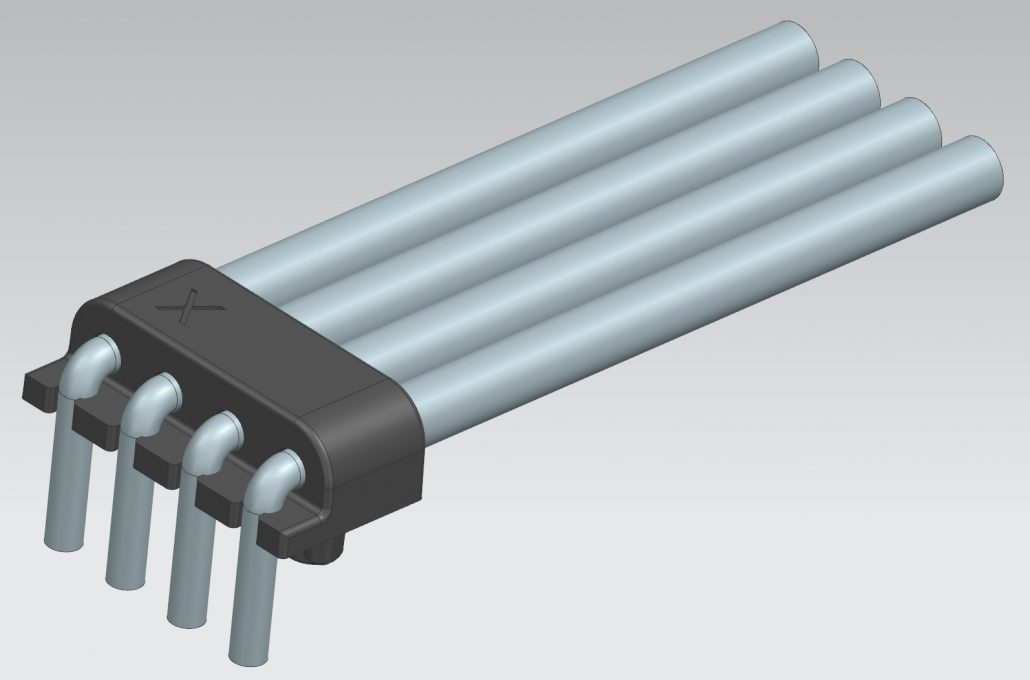

Ultra Low Profile Wireclip assembly for sensor tube ø 9

Ultra-flat, cost-efficient and reliable wire-to-board solutions

The new 4-pole ultra-low-profile WireClip reduces the space requirement continues significant compared to the previous single-row standard version and alternative solutions . The new WireClip is a wire-to-board solution for ultra-flat installation heights of 2.3 mm. The new ultra-low-profile WireClip is suitable for installation thanks to its special geometry in sensor tubes with an inner diameter of only 9 mm.

Technical specifications

• Minimal installation height
• Minimal manual equipping and processing effort
• Easy and fast installation on the circuit board
• Failure-resistant, 100 % tested cable manufacture
• Flexibility due to differen pitches, pole numbers and conductor cross-sections
• High temperature resistant Ul94-V0 thermoplast for SMT-Reflow soldering process
• Approval for automobile industry
