Description

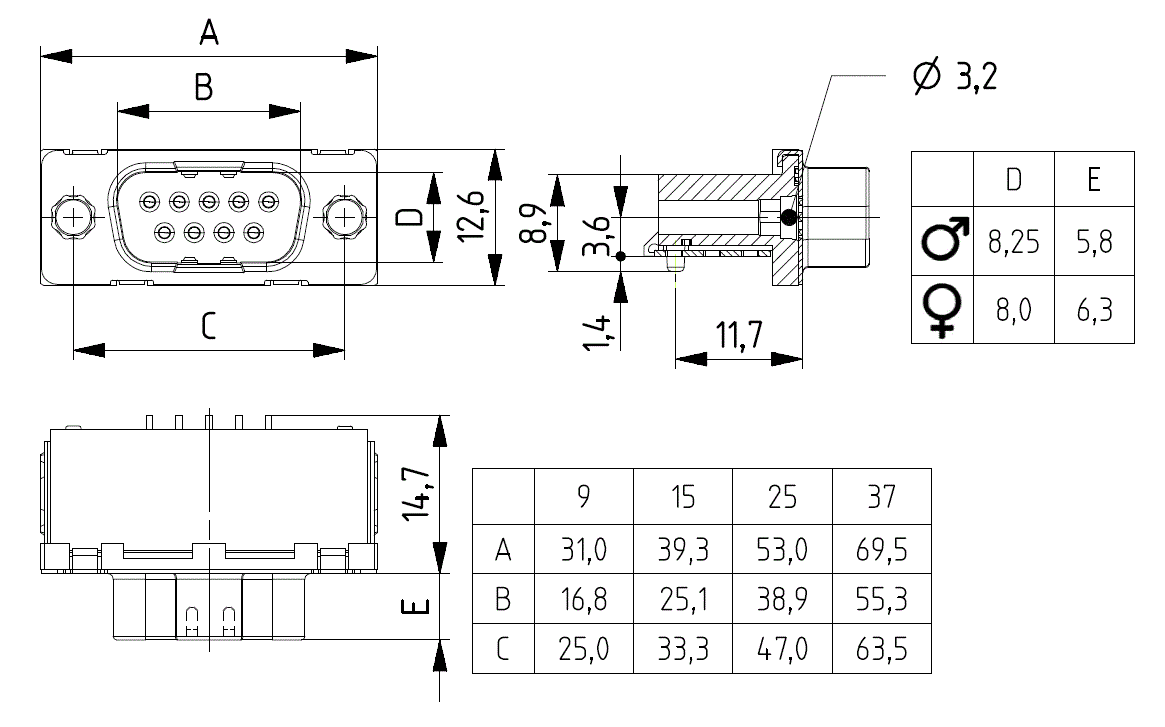

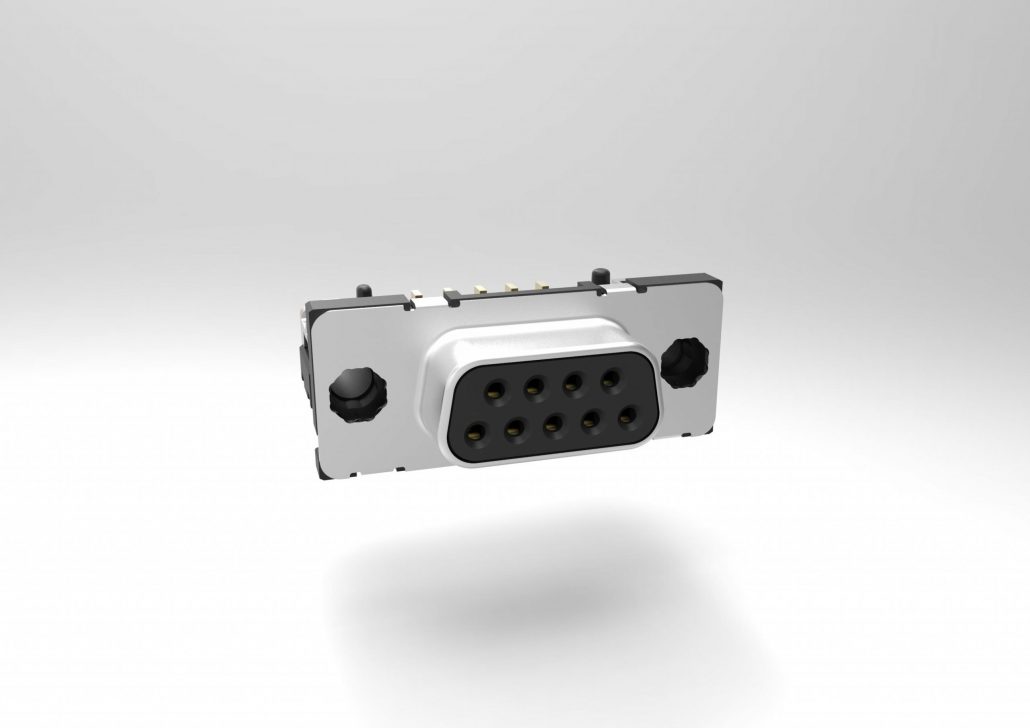

TMC D-Sub  SMT 90° Eurostyle Through Hole

Installation height 3.6 mm

Technical features

– Design according to IEC 802-3 (DIN 41 652)
– Standard with installation height 7.3 mm
– Angled THR (Thru Hole Reflow) connection
– Design suitable for all common SMT soldering processes such as
  SMT Reflow and vapor phase
– Gripper surface integrated for automatic pick & place
– Through hole Ø 3,2
– Types of pin and socket
– Pole number: 9/15/15/37
– UL approval
