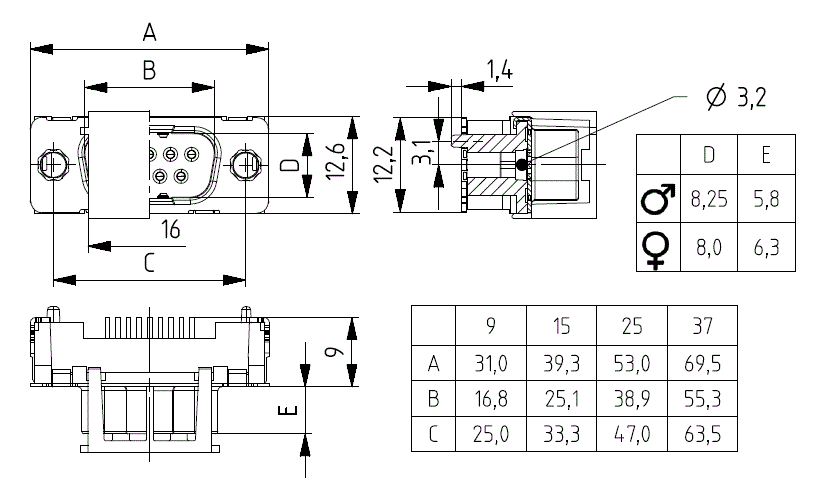

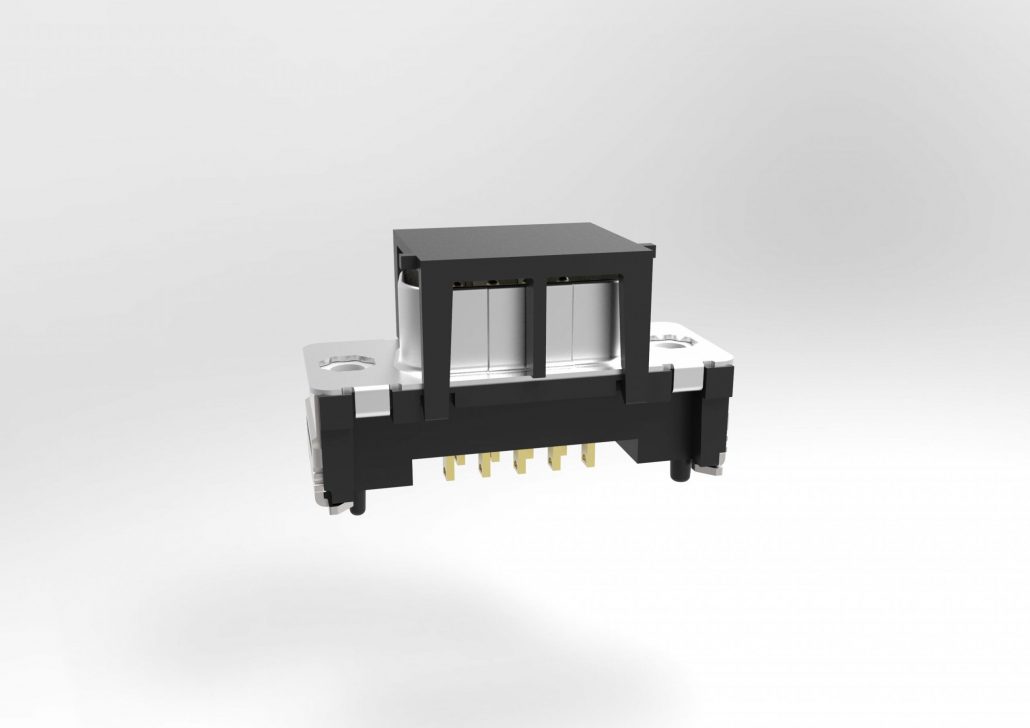

Description

TMC D-Sub SMT 180° High Thread

Installation height 9 mm

Technical features

– Design according to IEC 802-3 (DIN 41 652)
– Eurostyle with installation height 3.6 mm
– Angled THR (Thru Hole Reflow) connection
– Design suitable for all common SMT soldering processes such as
  SMT Reflow and vapor phase
– Vacuum pick-up cap pre-equipped for automatic pick & place
– Thread UNC 4-40 or M3
– Types of pin and socket
– Pole number: 9/15/15/37
– UL approval
