Standard Wireclip Cable Assemblies

Efficient and space-saving Wire-to-Board solutions with fully-wired Wireclip cable manufacture on a minimal installation height.
Reliable connections of single strands and single cores of circular and external conductors in
different, customer-specific configurations have to be implemented.



[{ oxcontent ident=Video8I9gcZcvV18 }]





Technical Data

Technical specifications

  • Minimal installation height.
  • Minimal manual equipping and processing effort
  • Easy and fast installation on the circuit board due to integrated snapclip
  • Vibration-proof wire-to-board solution due to integrated snapclip
  • Failure-resistant, 100 % tested cable manufacture
  • Flexibility due to differen pitches, pole numbers and conductor cross-sections
  • High temperature resistant Ul94-V0 thermoplast for SMT-Reflow soldering process
  • Approval for automobile industry

Dimensions

Abmessungen / Dimensions
Ausführung
Type		 AWG /
mm²		 Polzahl
No of poles		 Raster
Pitch		 PCB Loch
PCB hole		 Leiter
Conductor		 Kabel max.
Cable max.		 Breite
Width		 Höhe
Height		 Länge
Lenght

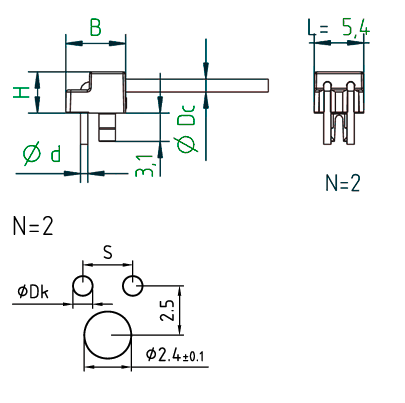

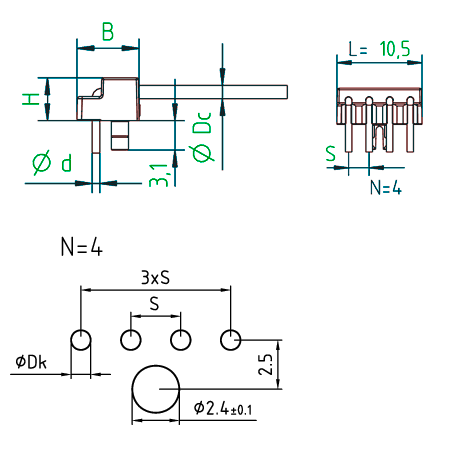

N S, mm Dk, mm d, mm Dc, mm B, mm H, mm L, mm
FG182 18 / 0,75 2 4,00 1,6 1,2 1,9 7,0 5,0 9,0
HC182 18 / 0,75 2 3,00 1,6 1,2 1,9 7,0 5,0 7,5
HC262 26 / 0,15 2 2,54 1,0 0,5 1,1 6,5 4,5 5,4



Abmessungen / Dimensions
Ausführung
Type		 AWG /
mm²		 Polzahl
No of poles		 Raster
Pitch		 PCB Loch
PCB hole		 Leiter
Conductor		 Kabel max.
Cable max.		 Breite
Width		 Höhe
Height		 Länge
Lenght
N S, mm Dk, mm d, mm Dc, mm B, mm H, mm L, mm
HC184 18 / 0,75 4 3,00 1,6 1,2 1,9 7,0 5,0 13,5
HC204 20 / 0,50 4 2,54 1,4 1,0 1,9 7,0 5,0 11,0
HC224 22 / 0,35 4 2,54 1,2 0,8 1,4 6,5 4,5 10,5
HC244 24 / 0,20 4 2,54 1,0 0,65 1,4 6,5 4,5 10,5
HC264 26 / 0,15 4 2,54 1,0 0,5 1,1 6,5 4,5 10,5



Abmessungen / Dimensions
Ausführung
Type		 AWG /
mm²		 Polzahl
No of poles		 Raster
Pitch		 PCB Loch
PCB hole		 Leiter
Conductor		 Kabel max.
Cable max.		 Breite
Width		 Höhe
Height		 Länge
Lenght

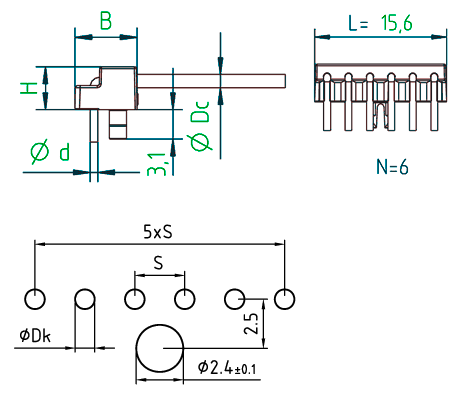

N S, mm Dk, mm d, mm Dc, mm B, mm H, mm L, mm
HC226 22/0,35 6 2,54 1,2 0,8 1,4 6,5 4,5 15,6
HC246 24/0,20 6 2,54 1,0 0,65 1,4 6,5 4,5 15,6
HC266 26/0,15 6 2,54 1,0 0,5 1,1 6,5 4,5 15,6
