Profibus Smart7 M12

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

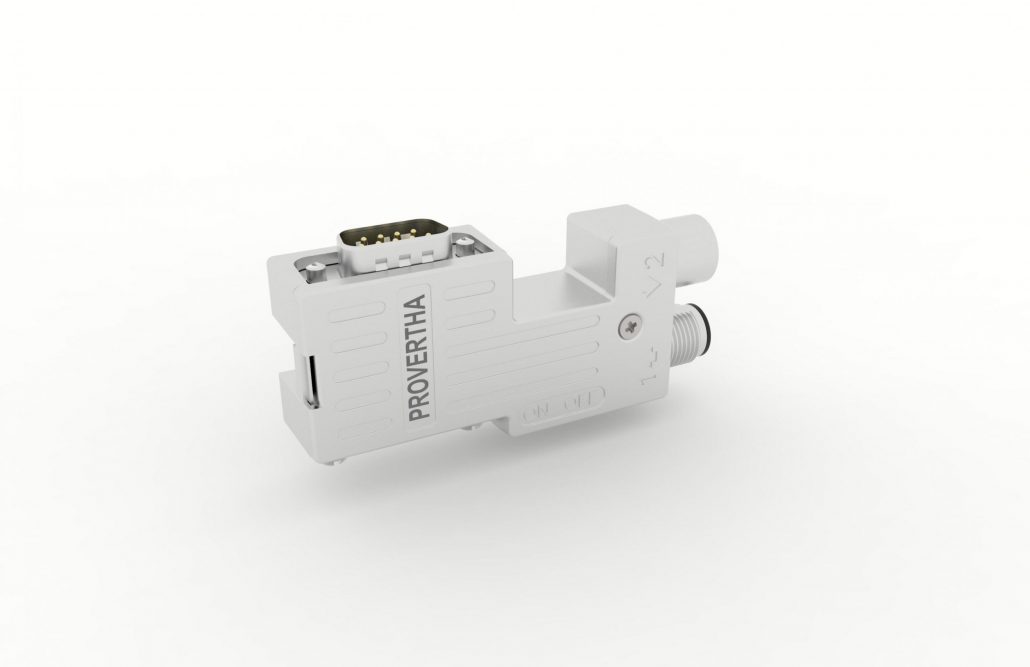

Fully shielded Profibus Bus Connectors with Plug’n Play M12 for S7-300 /S7-1200 /S7-1500

The Profibus bus connectors Smart 7 have a special housing design to fit for the application in the Siemens control devices S7-300 / S7-1200 and S7-1500.

Technical features

– Fail-safe data transmission with Plug &Play M12

– Safe shield connection due to use of fully shielded Profibus M12 cable assemblies

– Fully shielded housing for effective EMC protection

– Plug’n Play M12 version for the connection within seconds

– Failure free termination achieved by M12 connectors



Technical Data

Technical data





Data rate

12 Mbit/s

Bus interface

D-Sub 9-pin, pin

Mechanical lifetime

200 mating cycles

Temperature range

-20° C to + 70° C

Permitted humidity

Max. 75% at + 25° C, non-condensing

Protection class

IP 30

Housing material

Zn-alloy

D-Sub screw latch

UNC 4-40

Cable connection

Shielded M12 PROFIBUS cable

Dimensions
