Profibus M12 Y-splitter

incl. VAT zzgl. Versandkosten

S.17, Naming, Kategorie

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

Profibus M12 Y-splitter

360° Shielding and rough applications due to full metal housing

The fully shielded Profibus Y-distributors with solid full metal housing and protection
degree IP 67 are designed for applications with special EMC requirements and a rough

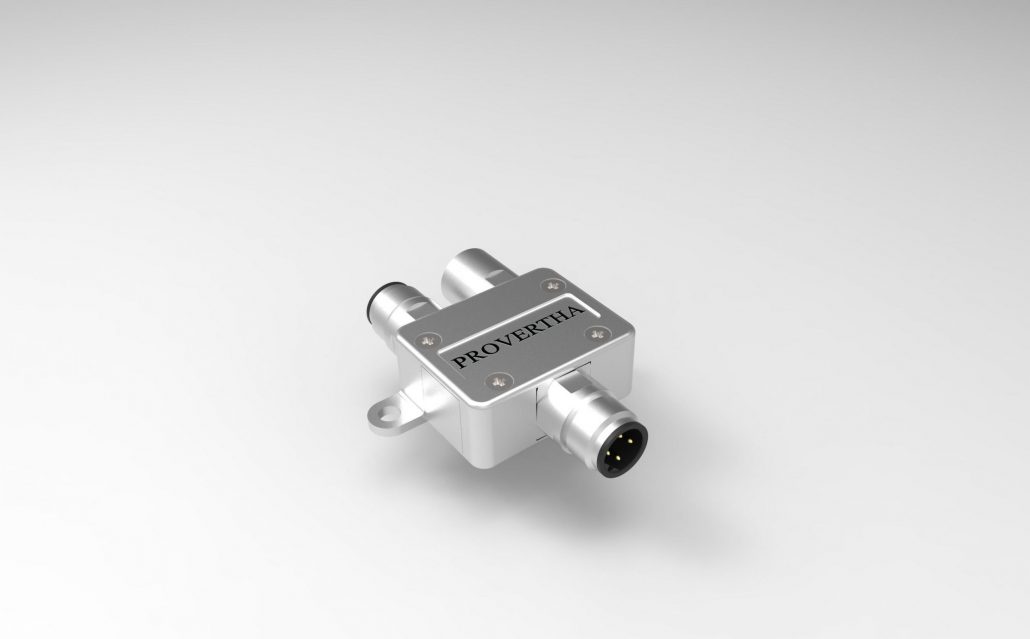

environment. For wall mounting, a version with 2 fixing holes is available, and for a direct connection

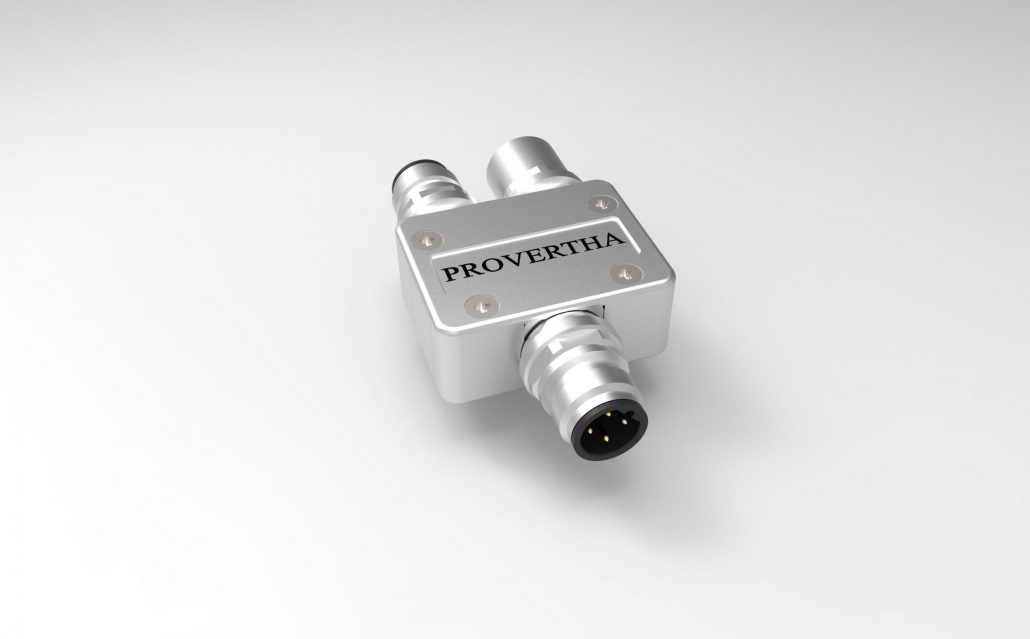

to Profibus devices with M12 interface, the version with rotating M12 nut is the best solution.

Technical features

  • 360° EMI/RFI full metal housing
  • Protection degree: IP 67 (only screw-locked)
  • M12 B-Code, 5 poles
  • Pin assignment: Pin 1-4 connected, shield connected with shell
  • 2 versions:
    Wall mounting
    Direct connection on PROFIBUS M12 interface
  • Simple and safe wall mounting with 2 x M4 screws (mounting hole: 4.3 mm)
  • Different male and female connector assignments upon request

[{ oxcontent ident=VideokIqqxwiuino }]

Technical Data

Technische Daten / Technical data

Steckverbinder/Connector 2 x M12 Stift/Male und 1 x M12 Buchse/Female
Pinbelegung/Pin assignment 1-4
Codierung/Coding B
Kontaktzahl/Number of contacts 4
Bemessungsstrom/Current rating 4 A
Betriebsspannung/Operation voltage 32 V DC
Schutzart/IP protection IP 67
Temperaturbereich/Temperature range –20° C bis/to +85° C
Mechanische Lebensdauer/Mechanical lifetime 200 Steckzyklen/mating cycles
Anzugsmoment/Torque
M12-Schraubverriegelung/M12 screw locking 0,8–1Nm (max. 2 Nm)
Schlüsselweite/Wrench size
M12-Schraubverriegelung/M12 screw locking SW 13
Materialien/Materials
Gehäuse/Housing
Material/Material ZnAl- und Cu-Legierung/ ZnAl- and Cu-alloy
Oberfläche/Plating Ni über Cu/Ni over Cu
Isolierkörper/Insulator Thermoplast UL 94-V0
Kontakte/Contacts
Material/Material Cu-Legierung/Cu-alloy
Oberfläche/Plating Au über Ni/Au over Ni
