Description

Bus Connector Compact Plug & Play M12

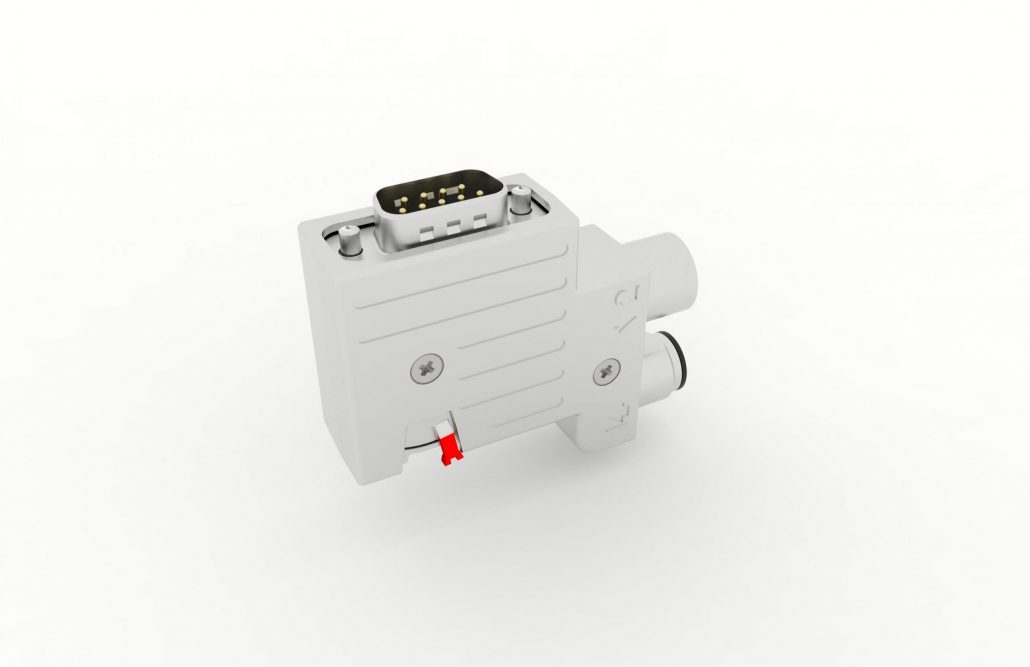

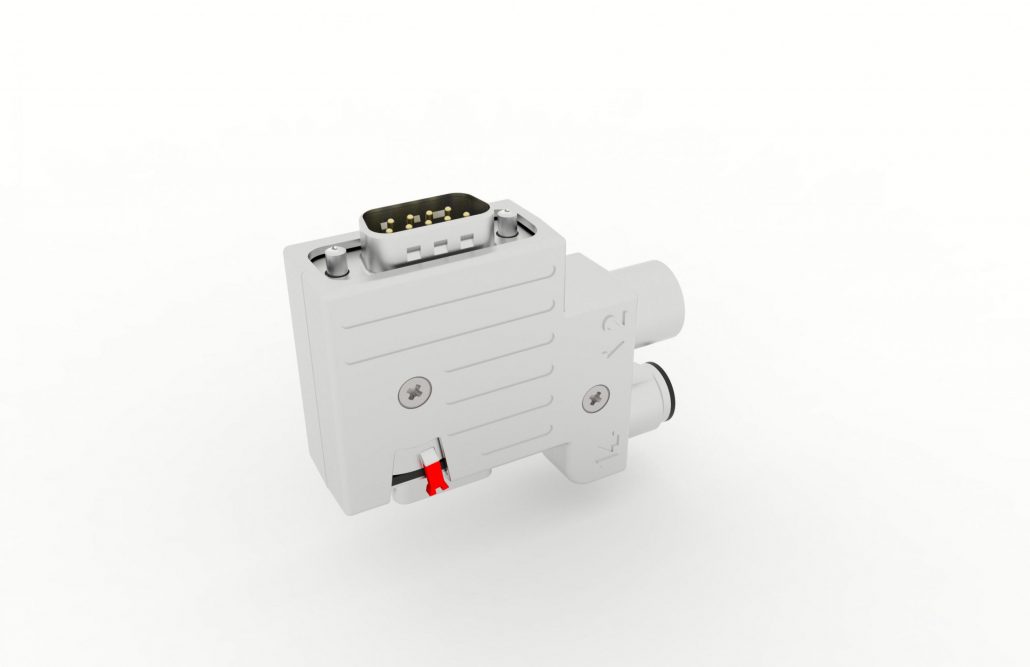

Compact PROFIBUS Bus connector Plug & Play M12

The easy and reliable connection for the interference-free data transmission is secured by Plug & Play bus connectors with two M12 plug connectors. Cus connection with 100% tested bus connectors and manufactured M12 PROFIBUS lines. Easy plug-in of the new Provertha bus connector and plig-in of the M12 bus cable and the PROFIBUS plays immediately.

Technical features

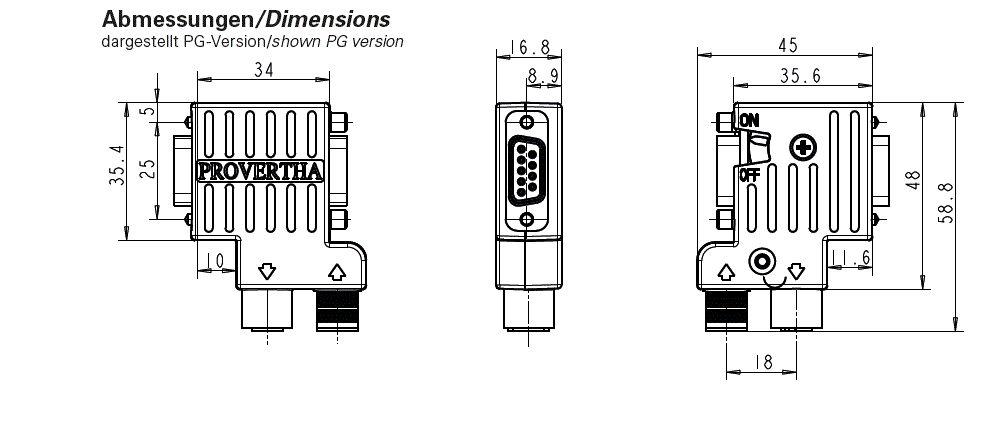

– Very compact outer dimensions for restricted installation situations

– Cable connection: 90° towards the D-Sub mating direction

– Fault-free PROFIBUS connection via B-coded M12 connectors for PROFIBUS cable connection

– Reliable PROFIBUS quick connection in a few seconds

– Easy installation without special knowledge

– Completely shielded die-cast zinc housing for EMI/RFI safety with a special shielding geometry at the housing

– Massive switch lever, externally operable for activation of the bus termination

– Lever ON/OFF position coloured and visible from the front

– Programming/diagnosis option with second D-Sub

– Latching: knurled screw UNC 4-40

– 100% tested bus connectors for high functional reliability
