Description

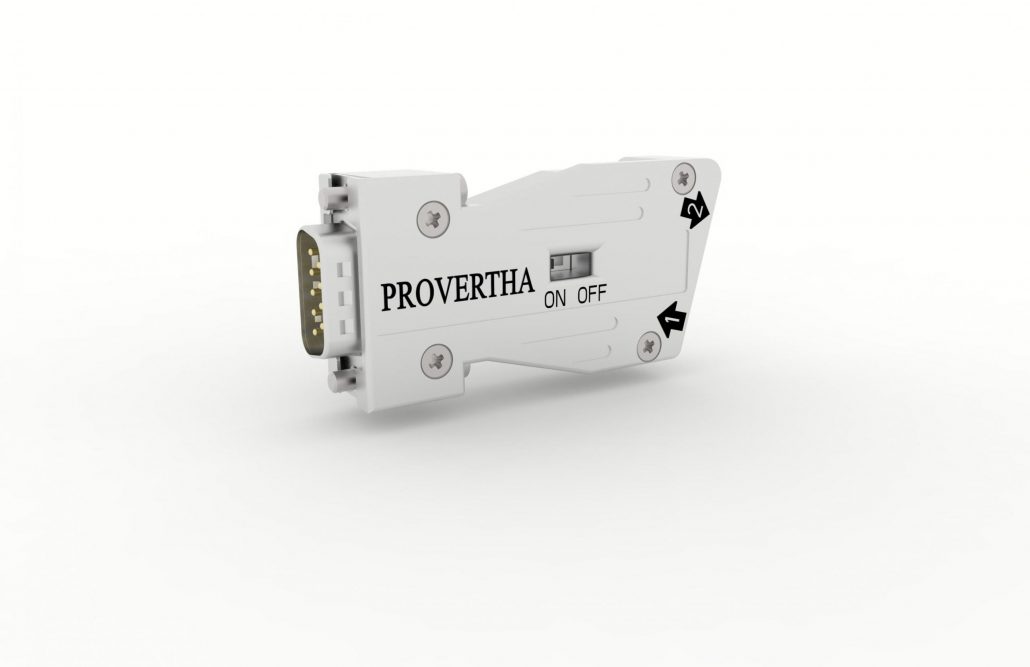

Bus Connectors Axial 360° EMI/RFI crimp flange connection

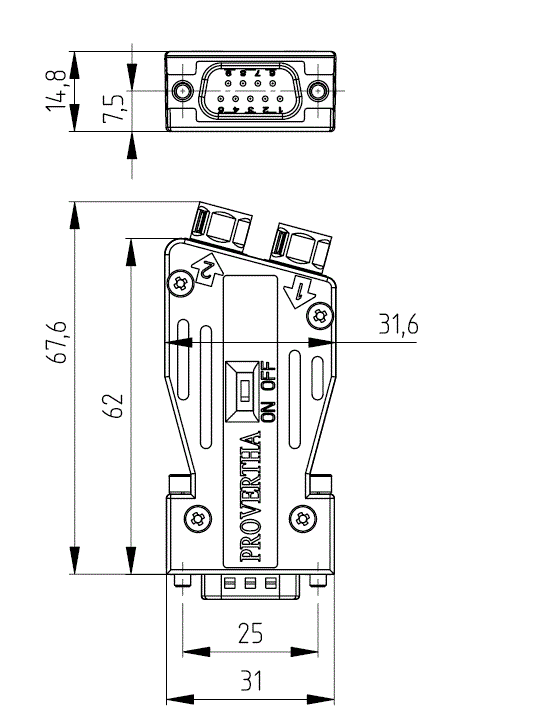

Axial PROFIBUS bus connectors External cable clamp

The simple and reliable connection and the fault-free EMC compliant data transfer with 360° EMI/RFI shielding for special requirements in applications like railway systems is secured by bus connectors with 360° EMI/RFI crimp flange system which ensure, due to the hexagonal crimp, a vibration- and torsion-proof strain relief and shield connection of the Profibus cable. The axial version allows the application in installation conditions with stacked interfaces.

Technical features

– Axial cable connection:
180° to D-Sub mating interface

– Effective 360° EMI/RFI shielding

– Version for railway and special EMC requirements with fully closed rf-proof metal hood and 360° EMI/RFI crimp flange system

– Entirely shielded zinc die-cast housing for EMC/RFI-proofness with special shielding geometry of the housing

– Fault-free PROFIBUS connection achieved by coloured cage clamp terminals for each individual Profibus wire

– Vibration-proof, quick and easy by means of a cage clamp terminal

– Flexibility for the outer cable diameter achieved by crimp flanges for various cable diameters, e.g. drag chain cables

– Switch can be operated externally or internally (depends on version) to activate the bus termination

– Switch ON/OFF position visible from front side

– Programming/diagnosis option with 2nd D-Sub

– Locking: Knurled screw UNC 4-40

– 100% tested bus connectors for high functional reliability
