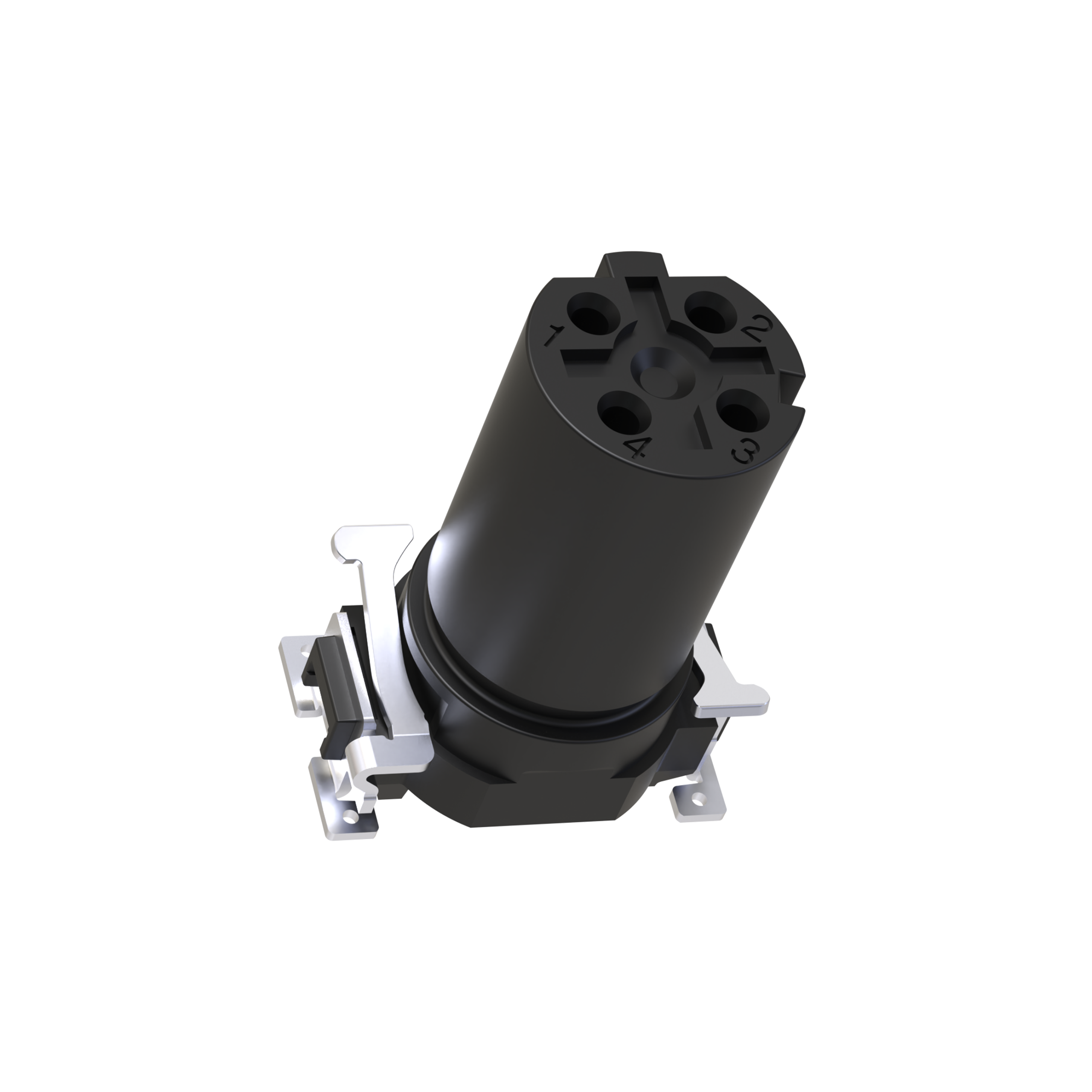

M8 SMT A-Code

Name: M8 SMT A-Code
SKU: 266961
Availability: InStock

– Design for fully automatic SMT process

– Socket versions – Shielded and unshielded versions

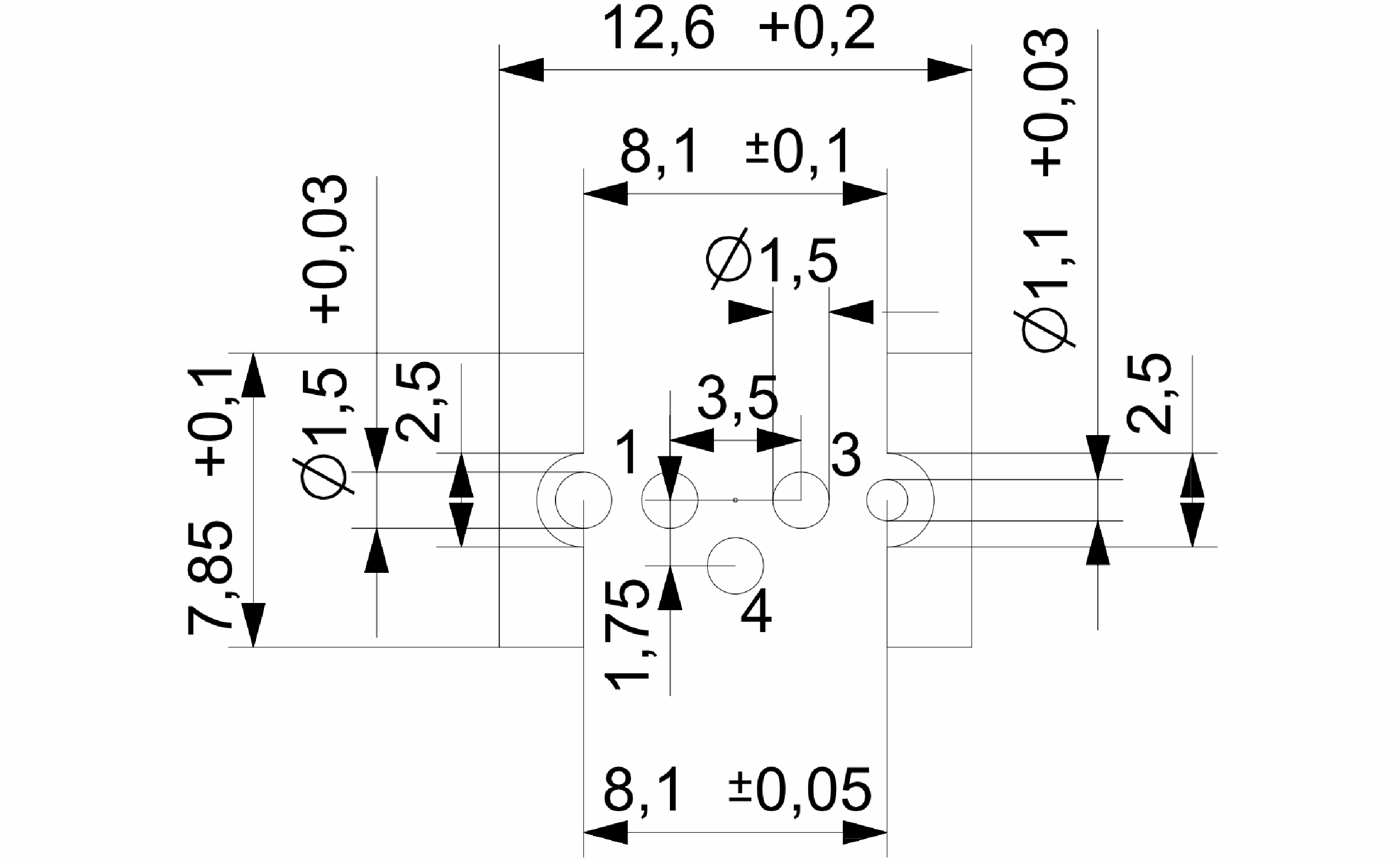

– 3-pin and 4-pin versions available

– Installation height: 17 mm

– other installation heights on request

– narrow rectangular design with 2 mounting brackets

– Spring-elastic contact design protects against contacts tearing off

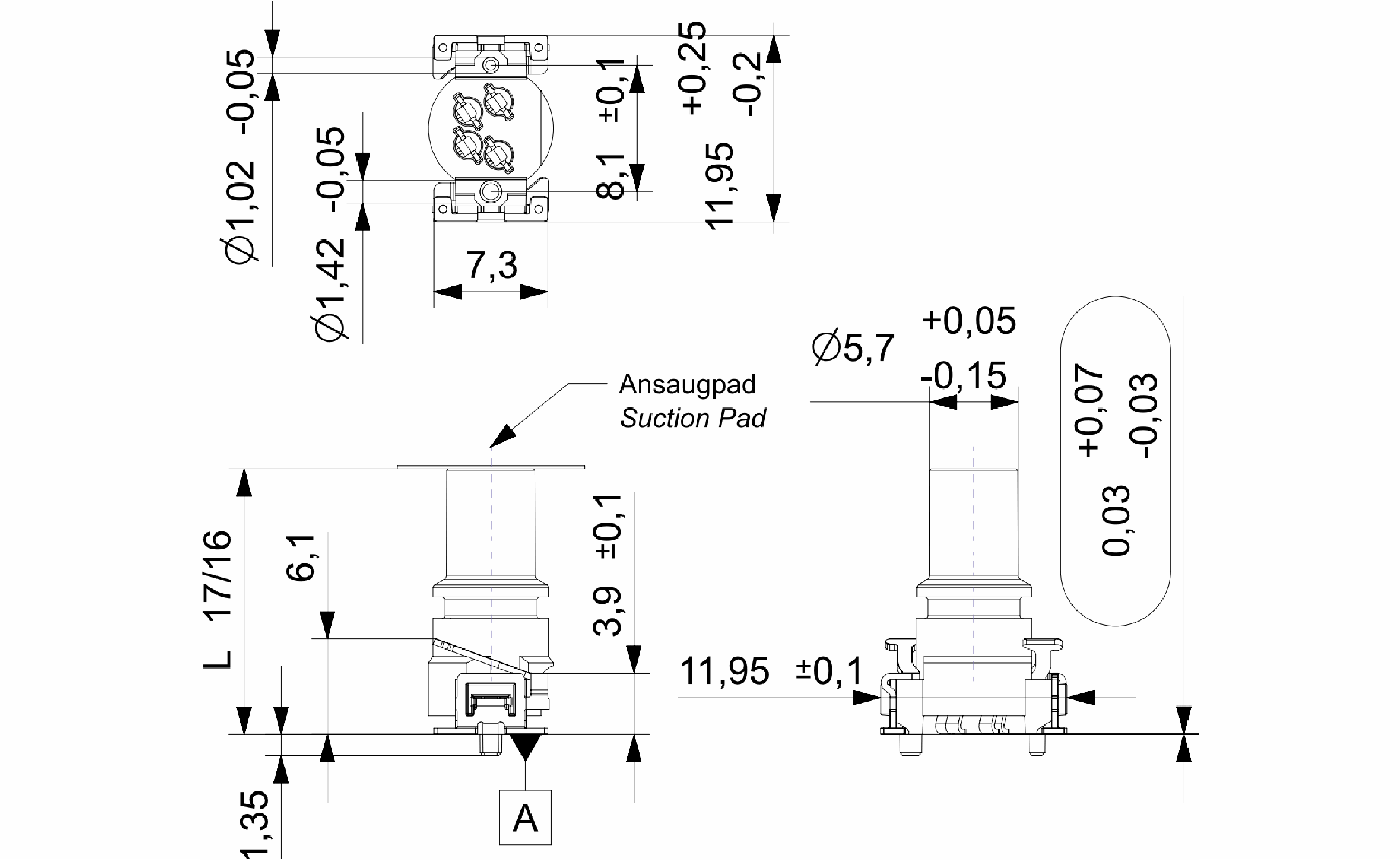

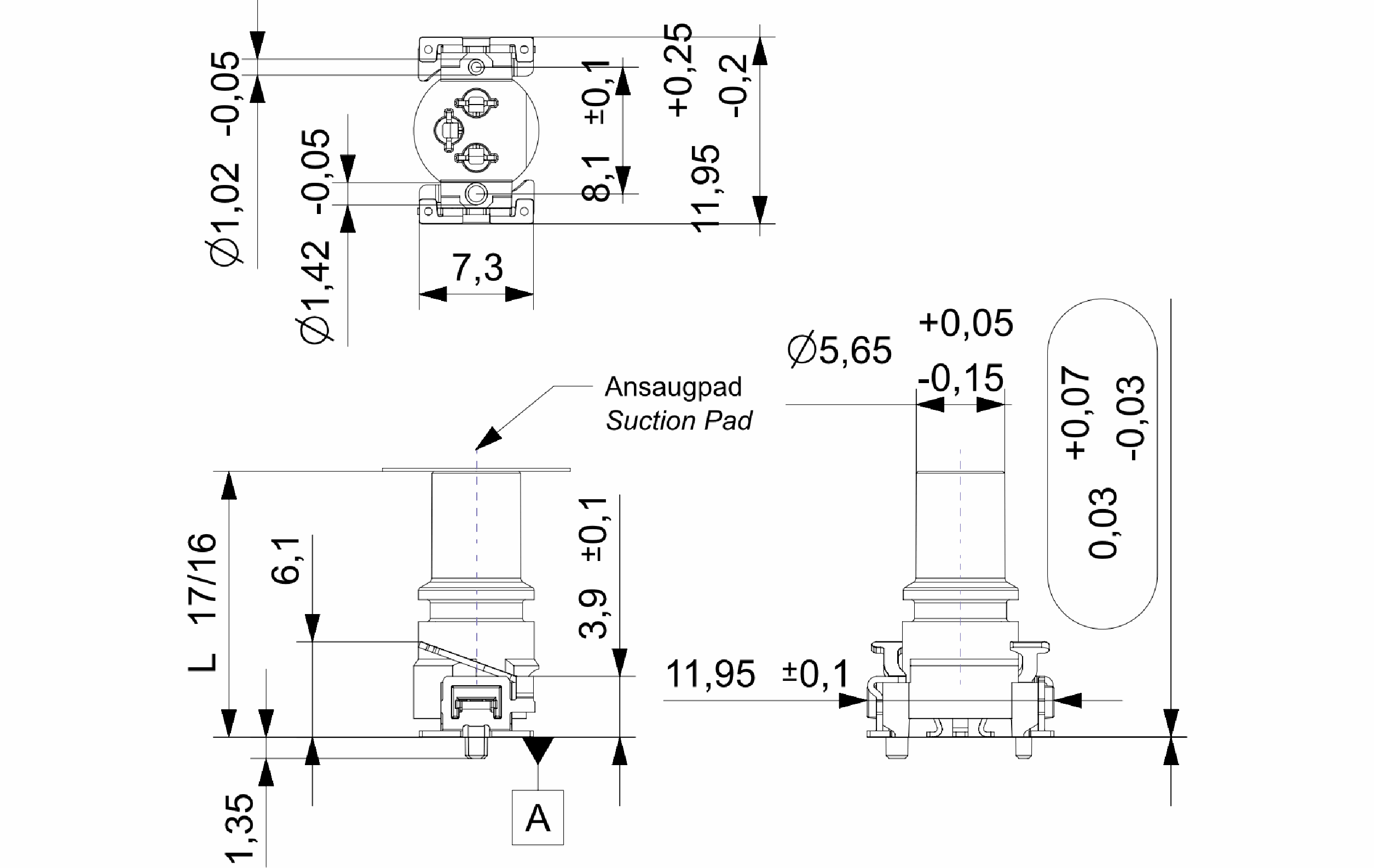

– High-temperature resistant insulating body and suction PAD

– T&R packaging

– Coding position: 0°

– Other coding positions on request

Technische Daten
Connector	M8 acc. to IEC 61076-2-104
Coding -No of pins	A-4/ A-3
Current rating	max. 4 A
Nominal voltage	60 V DC
Contact resistance	≤ 10 mΩ
Insulation resistance	≥ 100 MΩ
Overvoltage category	III
Pollution degree	3
Termination style	SMT
Coplanarity	< 0,1 mm
Reflow soldering temperature JEDEC J-STD-020C	20 – 40 sec at 260° C
Protection degree	IP 67 (only screw-locked )
Temperature range	–40° C up to +125° C (w/o O-Ring)
Mechanical lifetime	≥ 250 mating cycles
Locking	see accesories
Tightening torque	max. 0,4 Nm (M8x1 cable screw )
Materials
Insulator body	Thermoplast UL 94-V0
Contact material	Cu alloy
Contact plating	Ni/Au
Sealing gland	see accessories
RoHS and REACH	conform

M8 SMT A-Code number of poles
M8 SMT Shielding	Clear
