Description

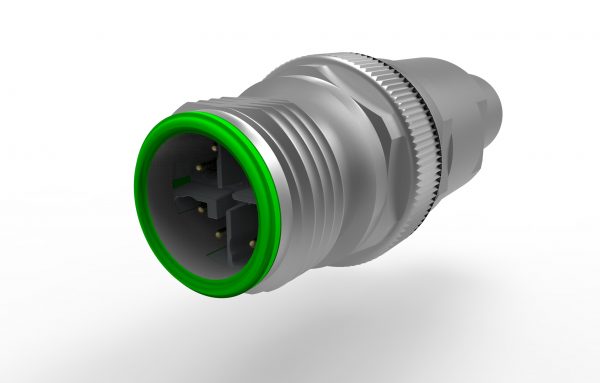

M12 X 10 Gbit Ethernet Connector crimp flange
360° Shielding and vibration-/torsion-proof
The 8-pin 360 ° EMI / RFI M12 crimp CF crossover with X-coding for 10 Gbit Industrial Ethernet and Profinet in protection class IP67 especially meets the requirements for the functionally reliable Ethernet connection and interference-free data transmission, e.g. B. in railway technology and in applications with vibration such. B. with automatic punching machines and torsion such as robot applications. The crossover version is specially designed for use in connecting lines for 1: 1 wiring with the same dimensions as
the standard version.
- The vibration-proof 10 Gbit Industrial Ethernet and Profinet M12 field connection
- Functionally reliable, error-free data transmission with high requirements
- High security in the network with turned crimp contacts
- Shielding and strain relief vibration / shock-proof with crimp flange / crimp sleeve system
- Shielding and strain relief torsion-proof with crimp flange / crimp sleeve system
- Qualification in a certified test laboratory according to DIN EN 61373 for railway applications
- Plastics certified for rail applications
- 360 ° EMI / RFI shielding through crimp flange and crimp sleeve system

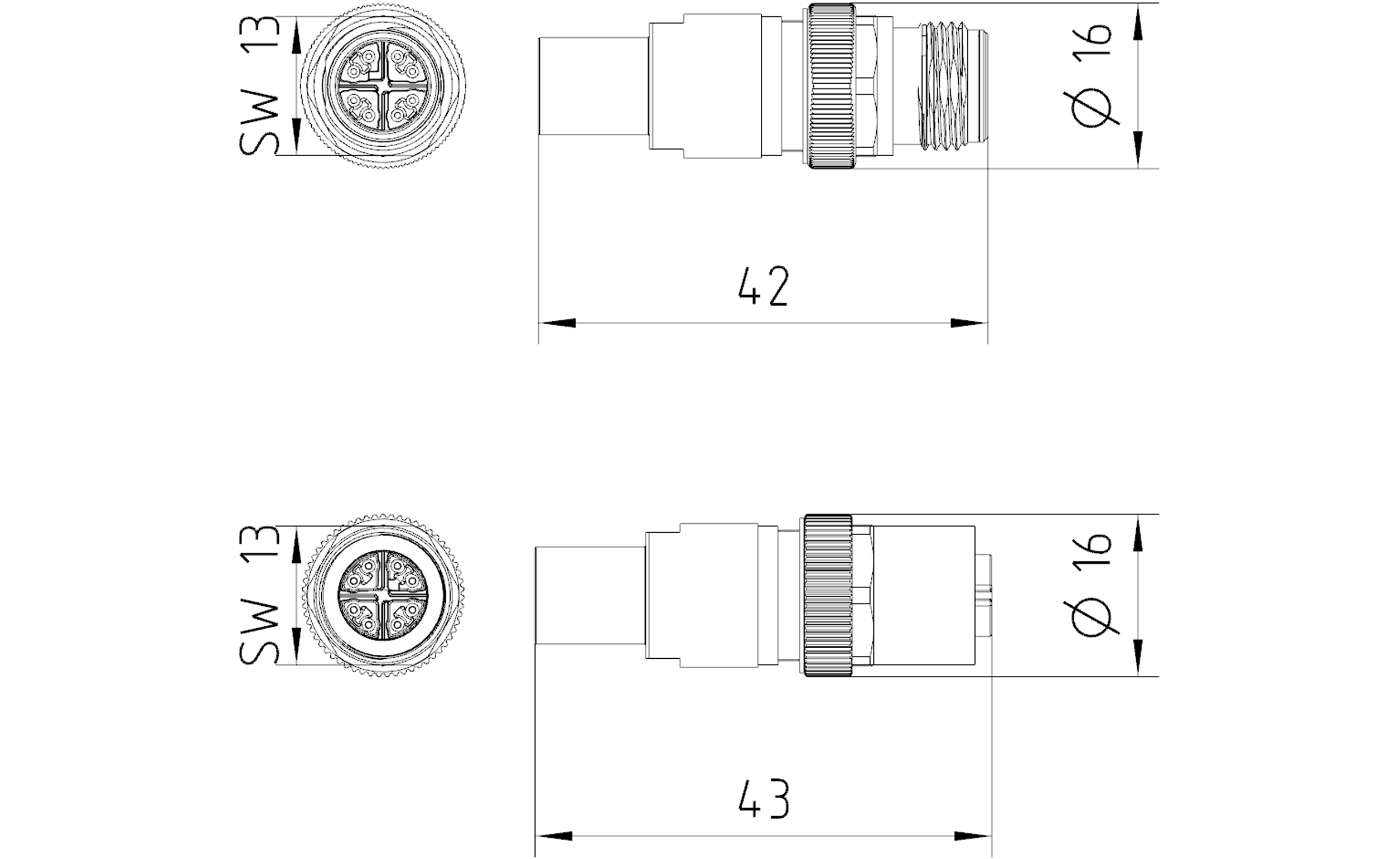

- Compact dimensions for applications with little installation space
- Full metal housing protects against interference and in harsh environments
- M12 locking with hexagonal combination knurl for defined tightening torque
- Simple assembly with few individual parts
- Large packaging with VPE 50 as loose individual parts in poly bags
- Item No. for PU 50: Index: 050 according to article no., e.g. B. 42-900001-050
