Description

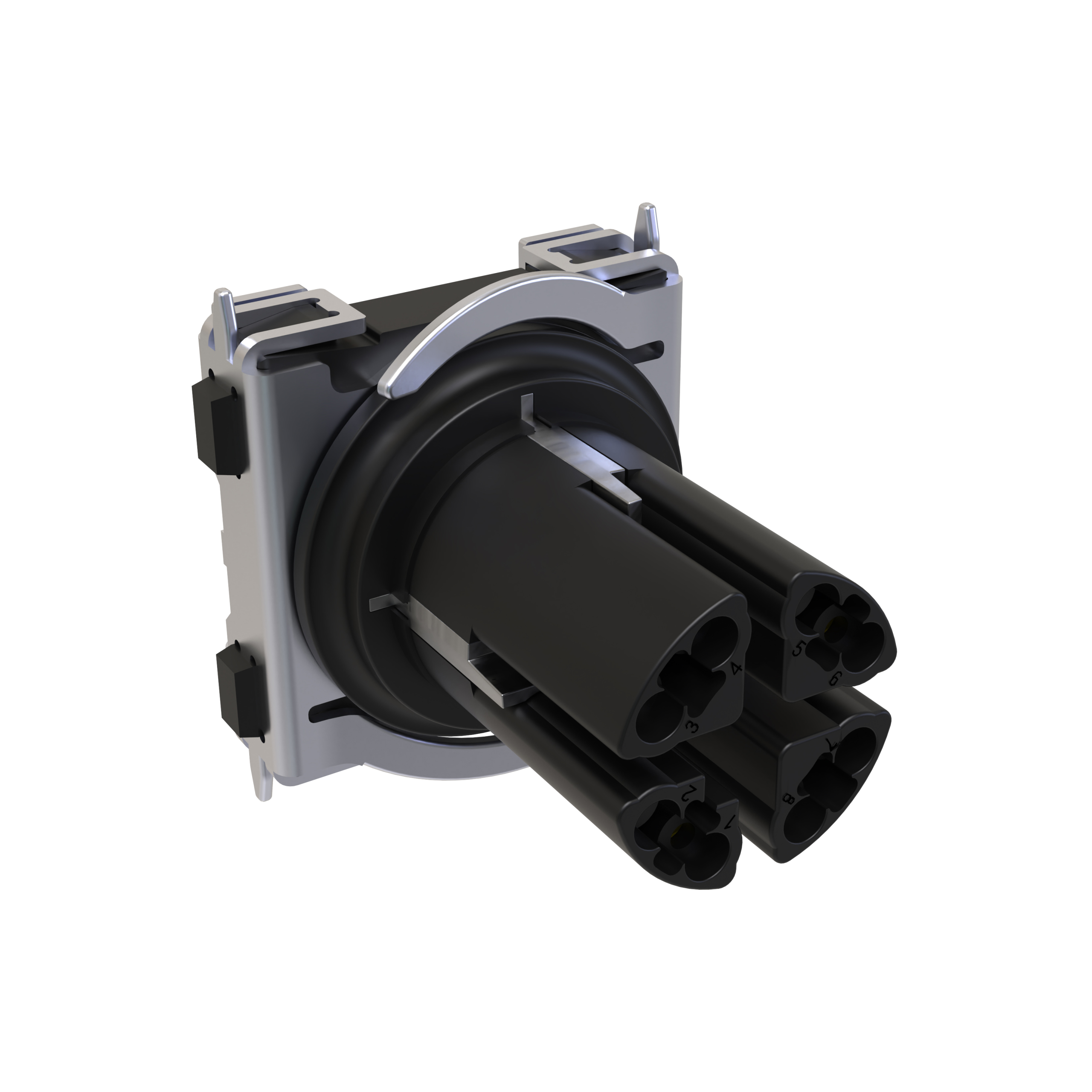

M12 SMT Ruggedized X-Coded

Name: M12 SMT Ruggedized X-Coded
SKU: 266923
Availability: InStock

– Design for fully automatic SMT process

– Female versions

– Shielded and unshielded versions –

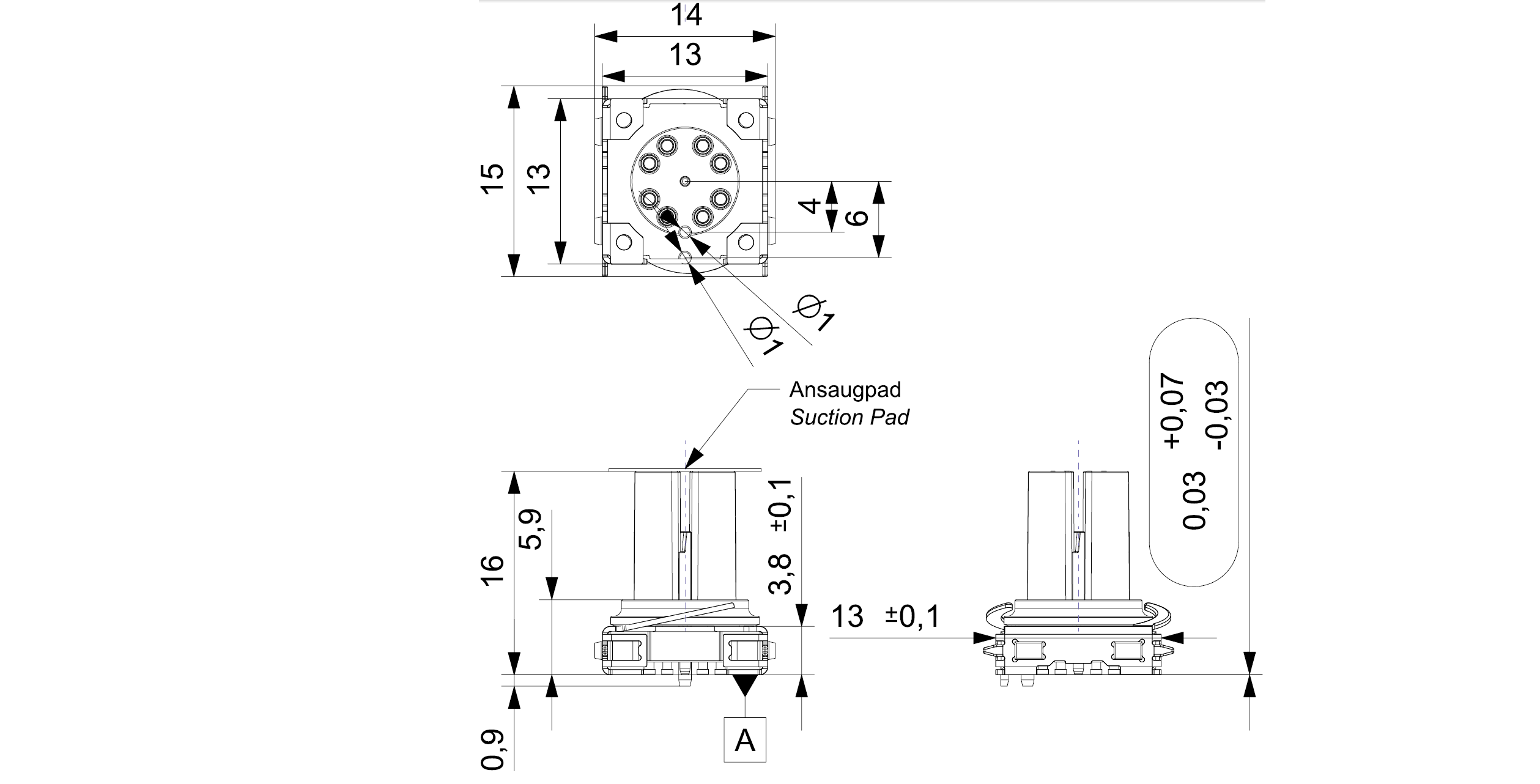

– Lowest Installation height on market: 16 mm

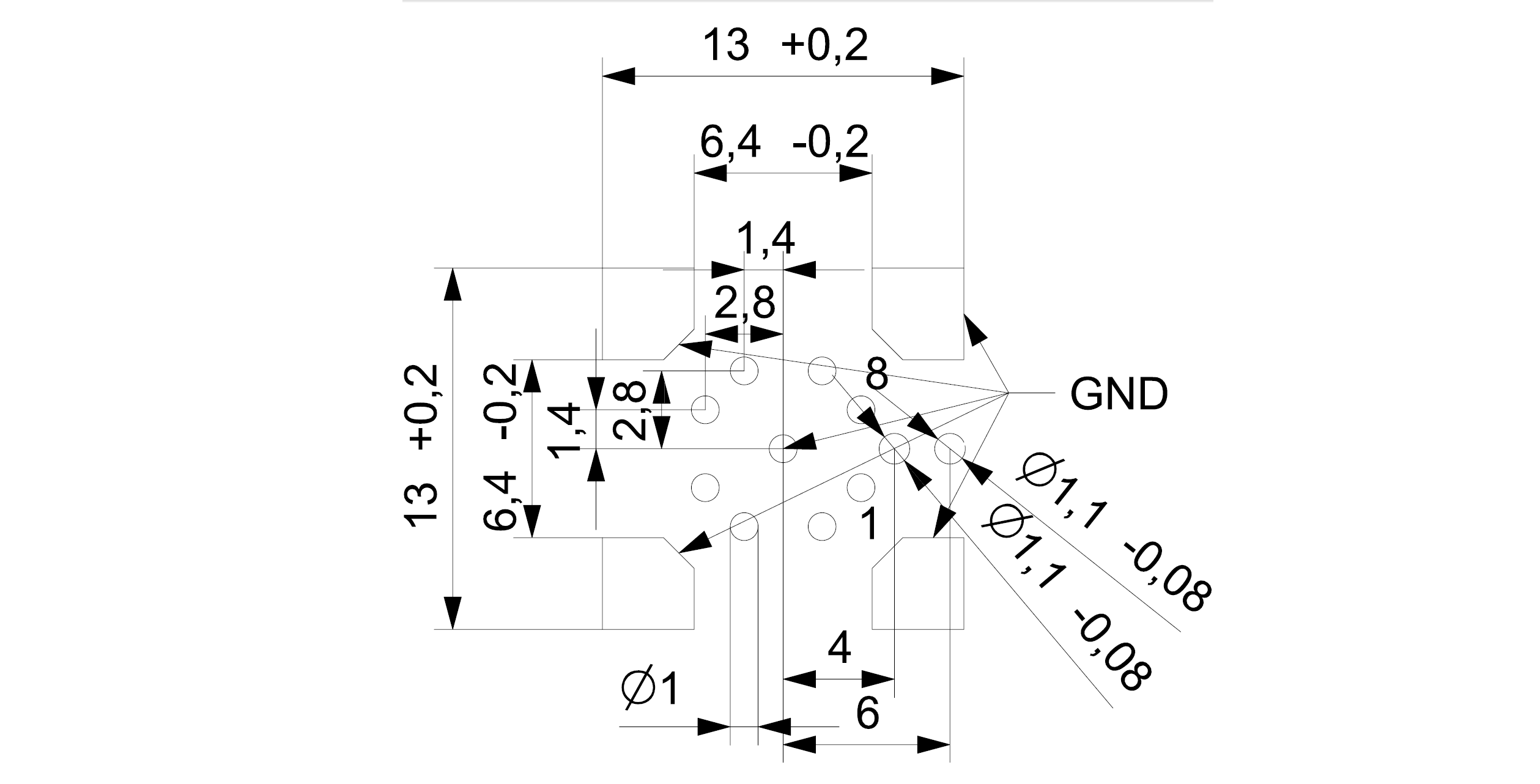

– Square design with 4 mounting/ground angles

– Optimized routing in all 4 directions possible

– Spring-elastic contact design protects against contacts breaking off under high stress

– High-temperature-resistant insulating body and suction PAD

– Tape packaging

– Coding position: 0°

– Other coding positions upon request

– Weitere Codierpositionen auf Anfrage

Technical data
Connector mating face	M12 acc. to IEC 61076-2-109
Gender-Coding-No of pins	Female X-coded
Current rating	0,5 A
Nominal voltage	48 V DC
Contact resistance	≤ 10 mΩ
Insulation resistance	≥ 100 MΩ
Overvoltage category	III
Pollution degree	3
Data transmission characteristics	Cat. 6A
Data transmission rate	up to 10Gbit acc. to IEC 802.3an
Termination style	SMT
Coplanarity	< 0,1 mm
Reflow soldering temperature JEDEC J-STD-020C	20 – 40 sec at 260° C
IP protection	IP 67 (in locked condition)
Temperature range	–40° C bis/to +105° C
Mechanical lifetime	≥ 250 Steckzyklen / mating cycles
Locking screw	see accessories
Tightening Torque M12 cable screw	max. 0,8 Nm
Tightening torque M14 locking	3 – 4 Nm
Materials
Housing	Cu-Legierung vernickelt / Cu alloy Ni plated
Insulation body + contact carrier	Thermoplat UL 94-V0
Kontaktmaterial / Contact material	Cu-Legierung / Cu alloy
Kontaktoberfläche /Contact plating	Ni/Au
Dichtungen / Sealings	see accessories
