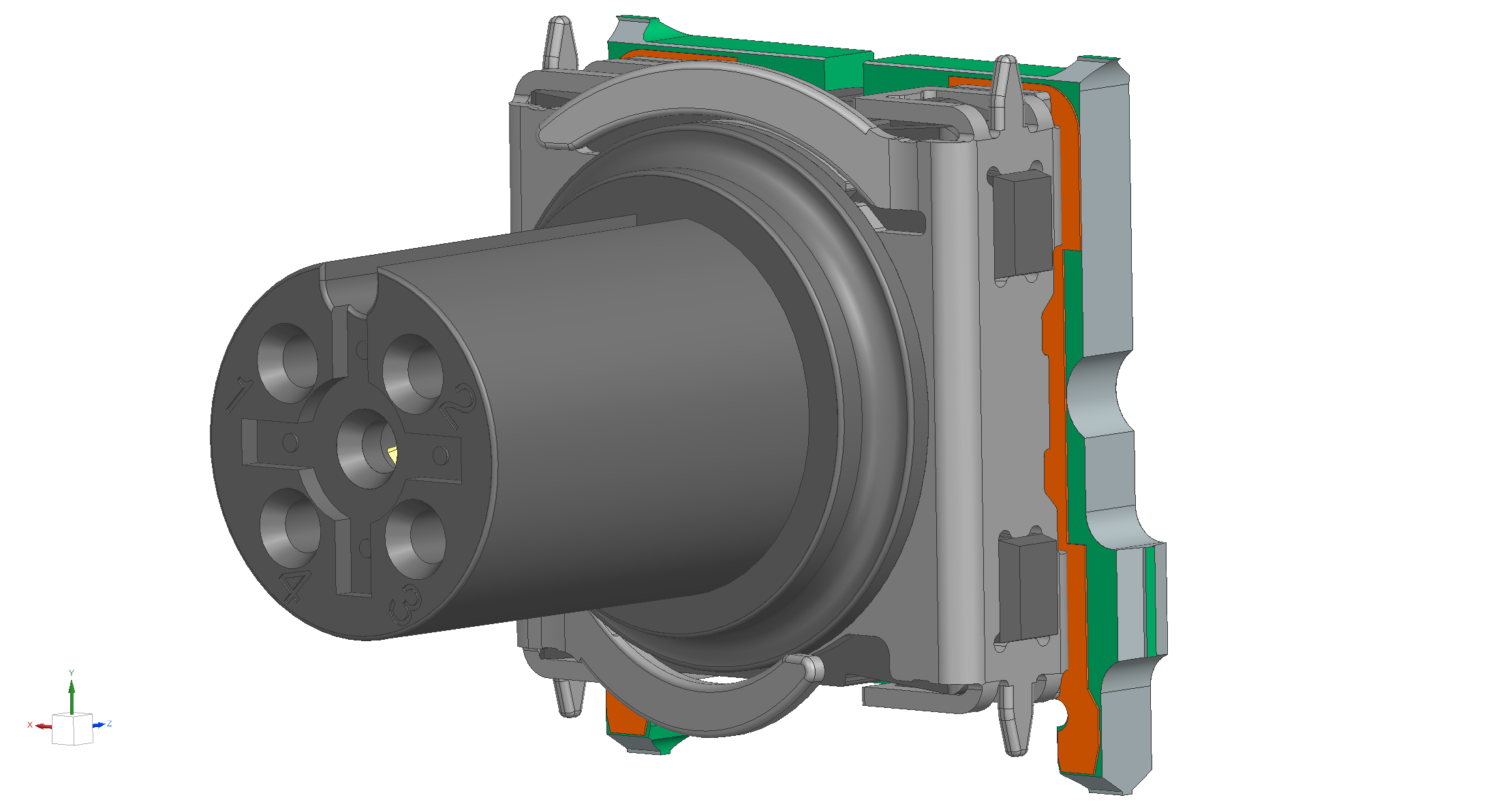

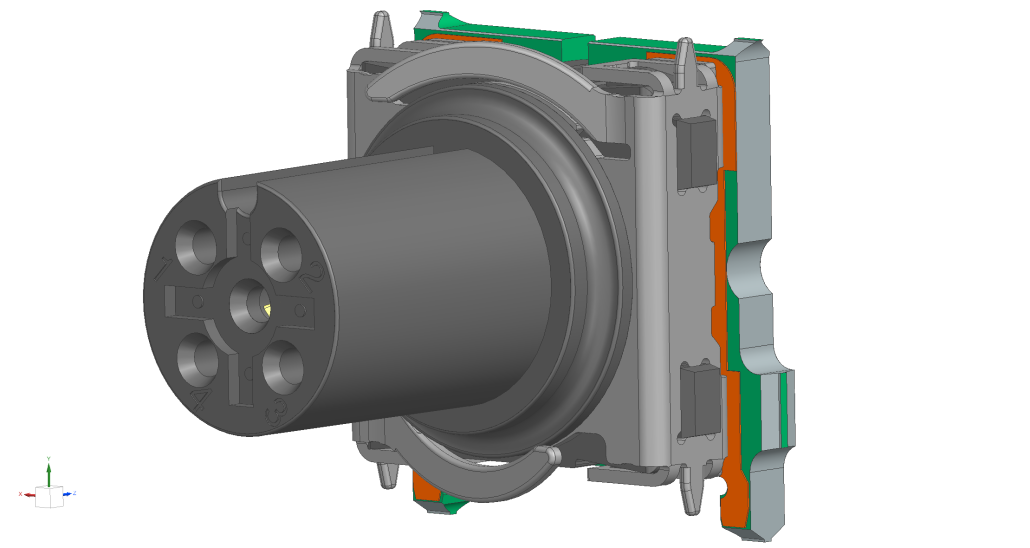

M12 SMT Ruggedized 90° B-Code

Name: M12 SMT Ruggedized 90° B-Code
SKU: 267764
Availability: InStock

– Design for fully automatic SMT process

– Socket versions

– Pin versions on request

– Shielded and unshielded versions

– 4-pin and 5-pin versions available

– Installation height: 14 mm

– Installation height suitable for use next to RJ45 interfaces or
as a replacement for RJ45 interfaces for outdoor switch versions

– Square design with 4 mounting/ground brackets

– Spring-elastic contact design protects against contacts breaking off under high stress

– High-temperature resistant insulating body and suction PAD

– T&R packaging

– Coding position: 0°

– Other coding positions on request

M12 SMT Shielding	Unshielded, Shielded

Technical data
Connector	M12 acc. to IEC 61076-2-101
Coding-No of pins	B-5
Current rating	max. 5 A
Nominal voltage	50 V DC (5-pole) / 250 V /4-pole)
Contact resistance	≤ 10 mΩ
Insulation resistance	≥ 100 MΩ
Overvoltage category	III
Pollution degree	3
Reflow soldering temperature JEDEC J-STD-020C	20 – 40 sec at 260° C
Termination style	SMT
Coplanarity	< 0,1 mm
Reflow soldering temperature JEDEC J-STD-020C	20 – 40 sec at 260° C
protection degree	IP 67 (only screw-locked)
Temperature range	–40° C bis/to +125° C (w/o O-Ring)
Mechanicaal lifetime	≥ 250 mating cycles
Locking screw	see accessories
Torque M12 locking	max. 0,8 Nm
Tightening torque M12 locking	3 – 4 Nm
Materials
Insulator body	Thermoplast UL 94-V0
Contact material	Cu alloy
Contact plating	Ni/Au
Sealing gland	see accessories
RoHS and REACH	conform
