Description

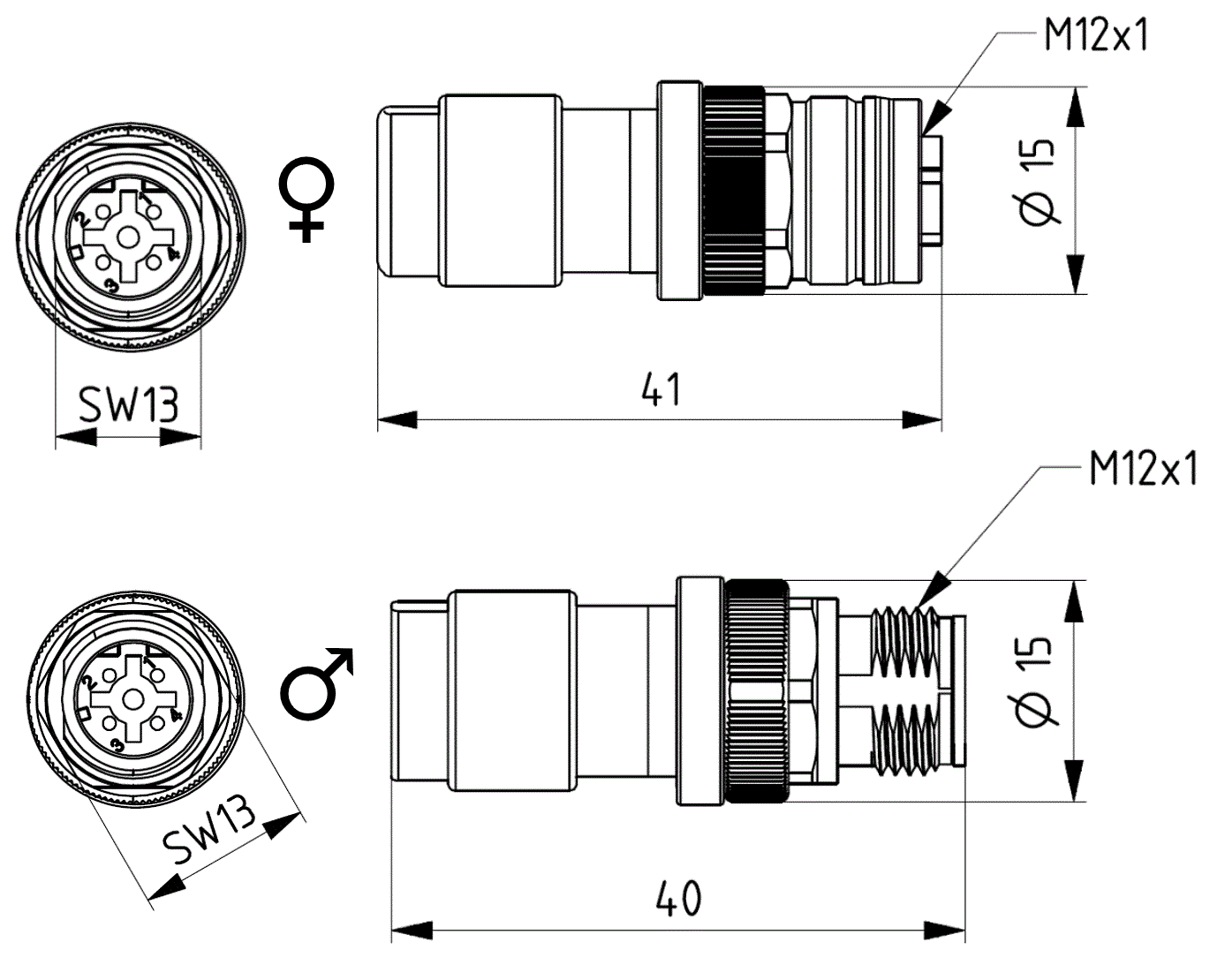

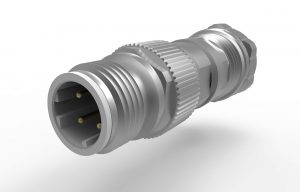

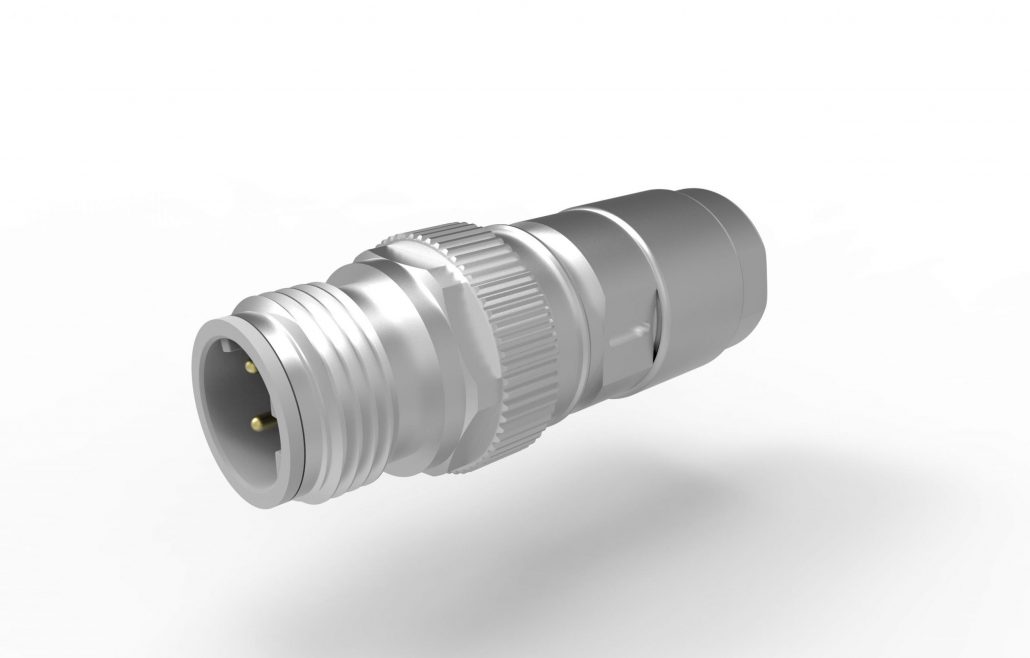

M12 Mini D Ethernet Crimp KV

The most compact, reliable M12 Ethernet and Profinet field connection
Functionally reliable, error-free data transmission with high requirements
High security in the network with turned crimp contacts
Safe strain relief and shield connection with cable gland
Large cable clamping range of 4 – 9 mm
Compact dimensions for applications with little installation space
Full metal housing protects against interference and in harsh environments
M12 locking with hexagonal combination knurl for defined tightening torque
Simple assembly with few individual parts
Certified plastics according to EN 45545-2 for railway applications
The crimp contacts for wire cross-sections AWG 18 – AWG 28 must be ordered separately
Large packaging with PU 50 as loose individual parts in poly bags
Item No. for VRE 50: Index: -050 according to article no., e.g. B. 42-300124-050

Connector	M12 acc. to IEC 61076-2-101
Coding-pin number	D-4
Current carrying capacity	4 A
Rated voltage	50 V DC
Contact resistance	≤ 5 mΩ
Insulation resistance	≥ 100 MΩ
Transmission parameter	Class D acc. to IEC 11801:2002
Data transfer rate	10/100 Mbit/s
Connection type single wire	Machined crimp snap-in contacts gold-plated
Wire sizes	AWG 18–28
Cable diameter	4–9 mm
Degree of protection	IP 67 (only screw-locked)
Temperaturbereich	–40° C up to +85° C
Mechanical lifetime	≥ 250 mating cycles
Housing	Cu alloy or Zn alloy Nickel-plated
Insulator body + contact holder	Thermoplast I2/F2 acc. to NFF-16-101/102 and HL3 acc. to R22/R23 EN 45545-2
Contacts	Cu alloy gold-plated
Seals	Elastomer
