M12 D-coded Industrial Ethernet rear panel crimp flange

incl. VAT zzgl. Versandkosten

M12 D-coded Ethernet bulkhead crimp flange

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

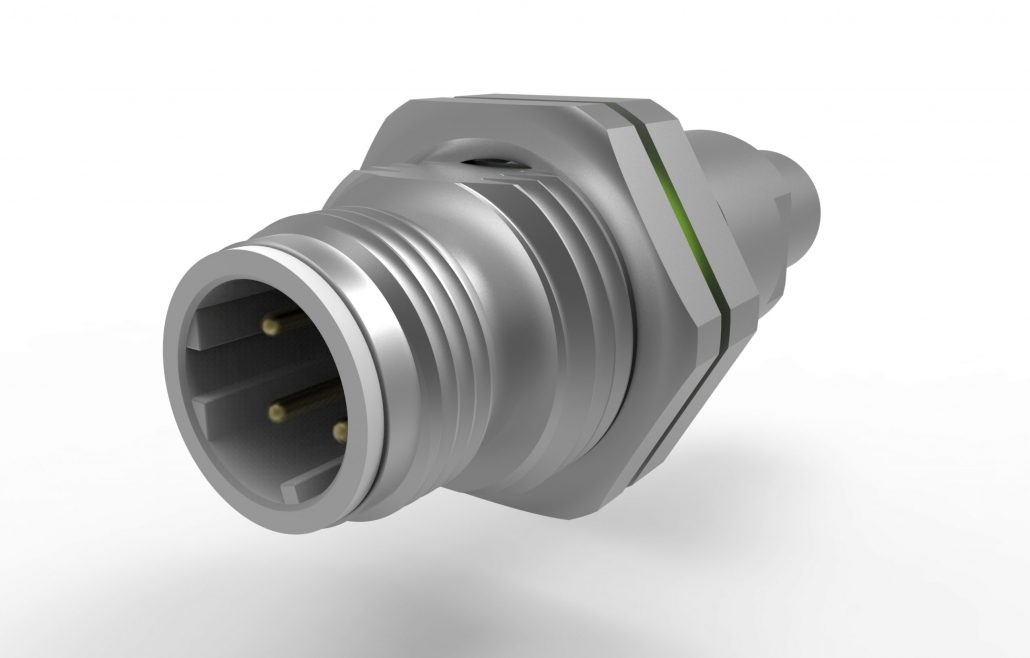

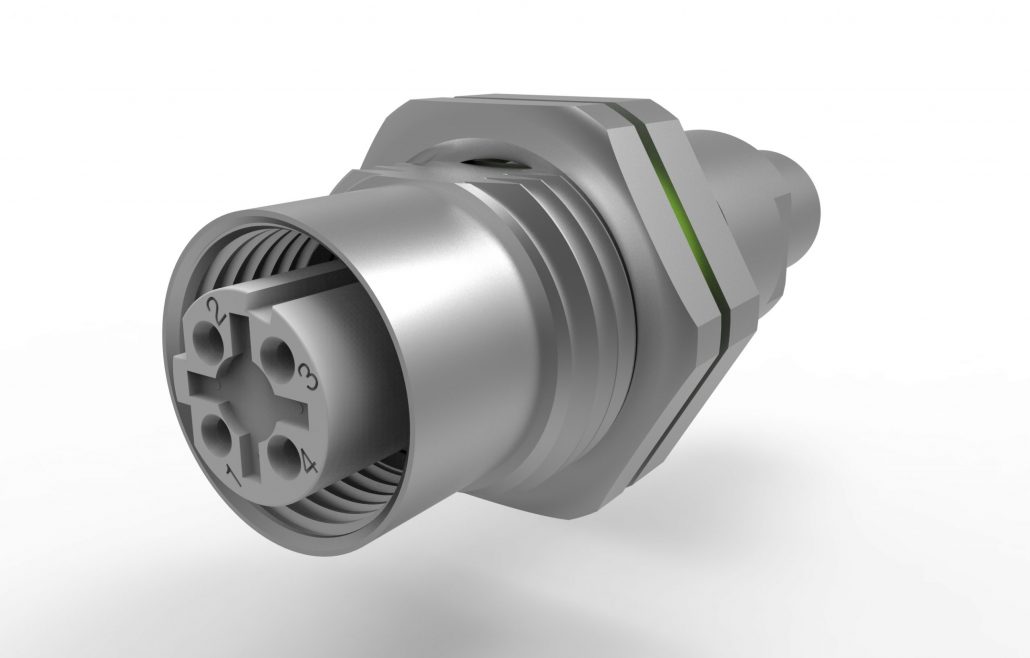

M12 D-coded Ethernet bulkhead crimp flange

360° Shielding and vibration-/torsion-proof



The new, fully shielded D-coded M12 connector crimp for rear panel installation in protection class IP67 particularly fulfills the requirements for the reliable Ethernet power connection and the interference-free data transmission in railway technology. This is achieved by a safe signal contacting through a safe signal contacting through machined massive crimp contacts and a safe shield contacting due to a very compact full-metal housing and a 360° EMI/RFI crimp flange system along with a shock- and torsion-proof cable strain relief. The full-metal housing provides a high sturdiness against damage in rough environmental conditions.



Technical Data

Steckverbinder

M12 gemäß/acc. to IEC 61076-2-101

Codierung -Polzahl/Coding-Pin number

D

Strombelastbarkeit/Current rating

5 A

Bemessungaspannung/Nominal voltage

50 V DC

Durchgangswiderstand/Contact resistance

≤ 5 mΩ

Isolationswiderstand/Insulation resistance

≥ 100 MΩ

Anschlussart Einzelader/Termination single wire

Gedrehte Crimp Snap-in Kontakte/Machined crimp snap-in contacts

Aderquerschnitt/Wire size

AWG 18-28

Kabelzugentlastung und Kabelschirmanschluss/Cable strain relief and cable shield termination

Crimpflanschsystem mit Crimpeinsatz + Crimphülse/Crimp flange system with crimp insert + crimp sleeve

Schutzart/IP protection

IP 67 (nur schraubverriegelt/only screw-locked)

Temperaturbereich/Temperature range

Mit Griffhülse / with grip cap: –40° C bis/to +70° C ohne Griffhülse/ w/o grip cap: –40° C bis/to +85° C

Mechanische Lebensdauer/Mechanical lifetime

≥ 200 Steckzyklen/mating cycles

Schock und Vibrationssicherheit/Shock and vibration proofness

DIN EN 61373 Kategorie 1, Klasse B/DIN EN 61373Category 1, class B

Materialien/Materials



Gehäuse/Housing

Cu-Legierung vernickelt/Cu alloy Ni plated

Isolierkörper + Kontakthalter/Insulator + contact holder

Thermoplast I2/F2 gemäß NFF-16-101/102 und HL3 gemäß R22/R23 EN 45545-2

I2/F2 according to NFF-16-101/102 and HL3 according to R22/R23 EN 45545-2

Material/Material

Cu-Legierung/Cu alloy

Oberfläche/Plating

Ni/Au

Griffhülse/Grip booth

TPE mit S3 und SR2 gemäß DIN 5510-2/TPE with S3 and SR2 according to DIN 5510-2

Dichtungen/Sealings

Elastomer

Gewinde Wandbefestigung/Panel mount thread

M16x1

Gehäuse Außen-6kt/Wrench size housing

SW 19/AF 19

Außenabmessungen/Outer dimensions in mm

56 x 21
