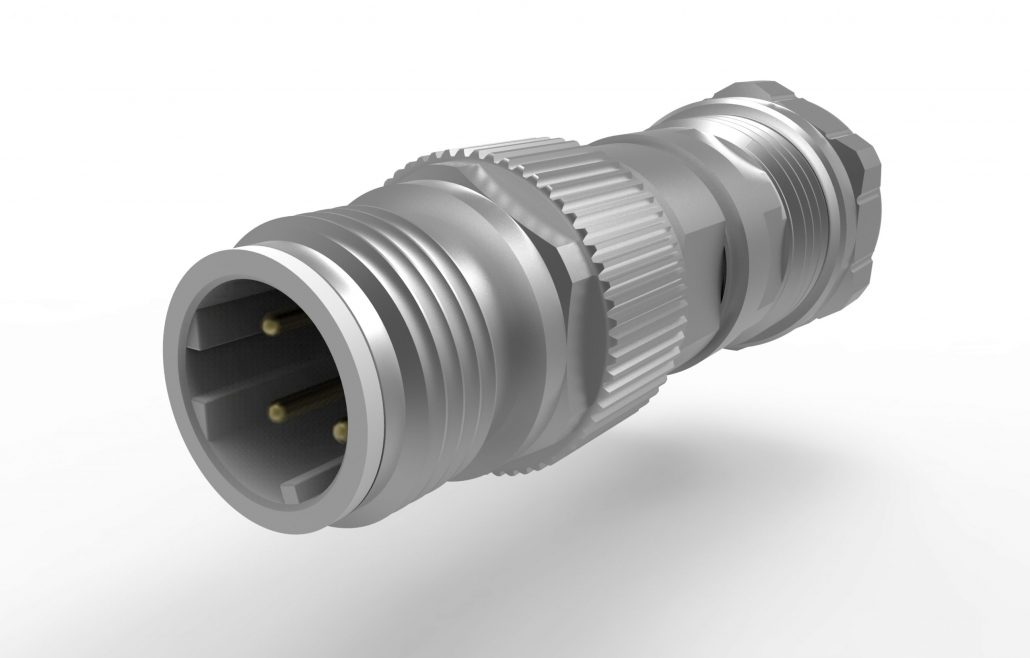

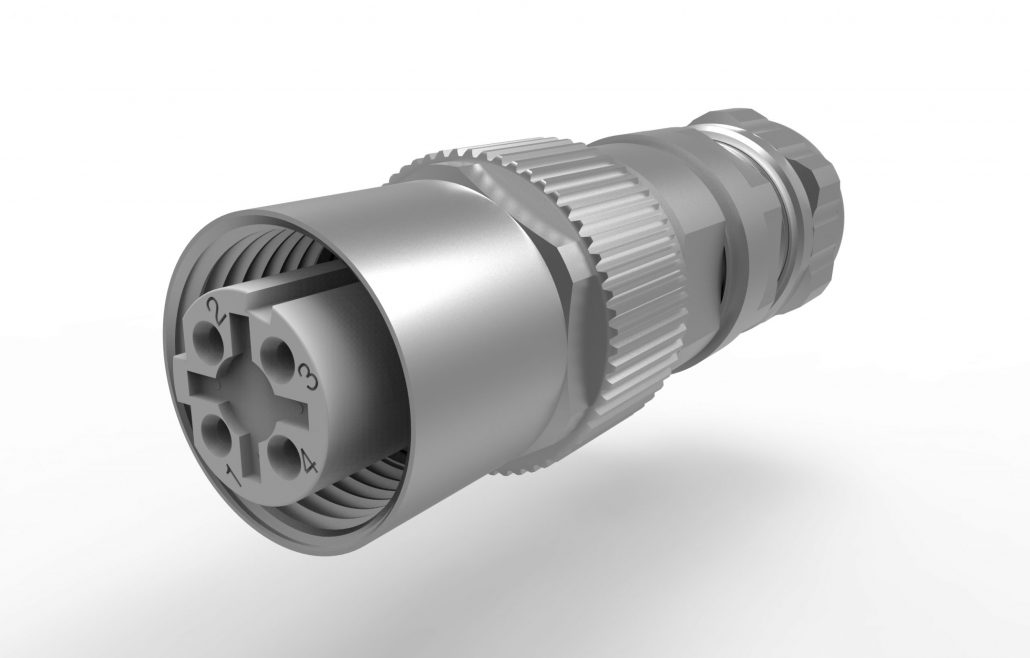

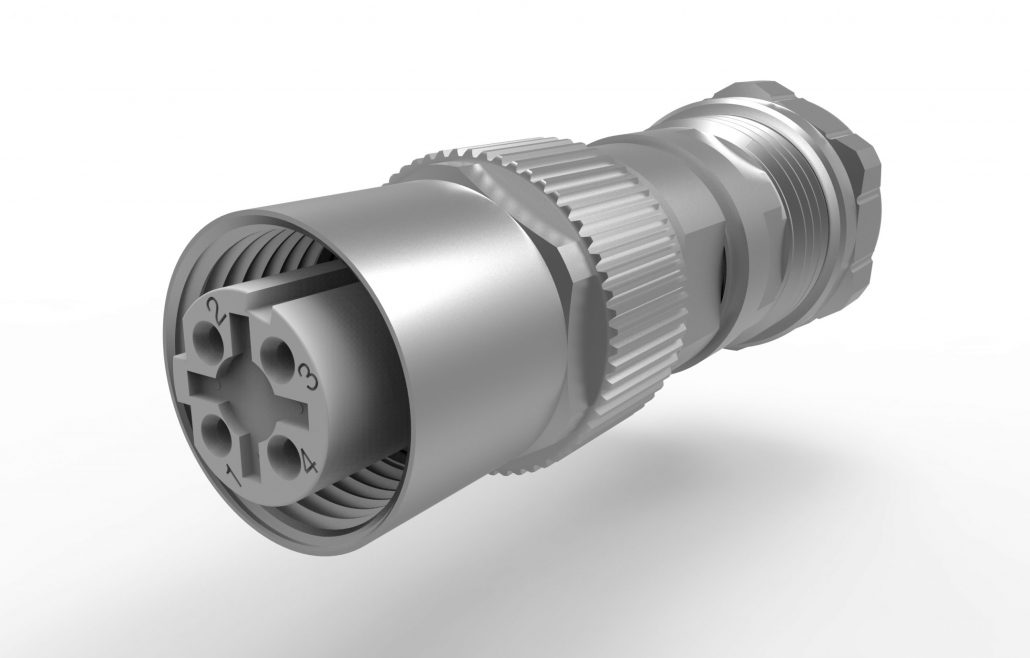

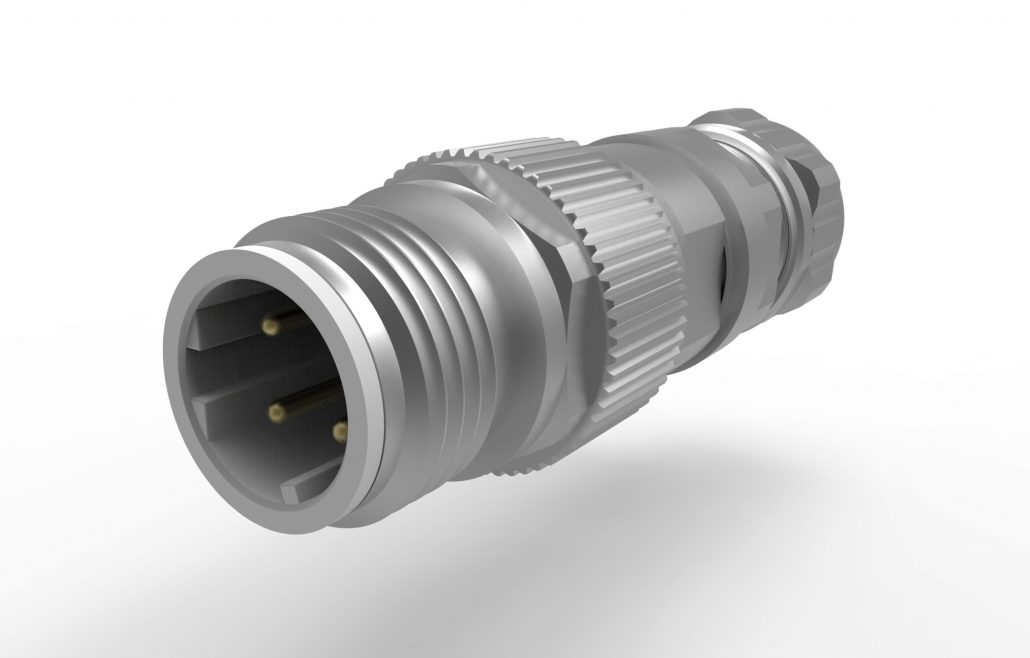

M12 D-coded Industrial Ethernet connectors
with cable gland

Fully shielded and wide cable clamp range 4 – 9 mm



  • The reliable M12 Industrial Ethernet and Profinet field connection
  • Functionally reliable, error-free data transmission with high requirements
  • High security in the network with turned crimp contacts
  • Safe strain relief and shield connection with cable gland
  • Large cable clamping range of 4 – 9mm / 4 – 6.5 and 5.5 – 9 mm
  • Compact dimensions for applications with little installation space
  • Full metal housing protects against interference and in harsh environments
  • M12 locking with hexagonal combination knurl for defined tightening torque
  • Simple assembly with few individual parts
  • The crimp contacts for wire cross-sections AWG 18 – AWG 28 must be ordered separately

Technical Data



Connector

M12 acc. to IEC 61076-2-101

Coding-pin number

D-4

Current carrying capacity

4 A

Rated voltage

50 V DC

Contact resistance

≤ 5 mΩ

Insulation resistance

≥ 100 MΩ

Transmission parameter

Class D acc. to IEC 11801:2002

Data transfer rate

10/100 Mbit/s

Connection type single wire

Machined crimp snap-in contacts gold-plated

Wire sizes

AWG 18–28

Cable diameter

4–9 mm

Degree of protection

IP 67 (only screw-locked)

Temperaturbereich

–40° C up to +85° C

Mechanical lifetime

≥ 250 mating cycles

Housing

Cu alloy or Zn alloy Nickel-plated

Insulator body + contact holder

Thermoplast

I2/F2 acc. to NFF-16-101/102 and
HL3 acc. to R22/R23 EN 45545-2

Contacts

Cu alloy gold-plated

Seals

Elastomer

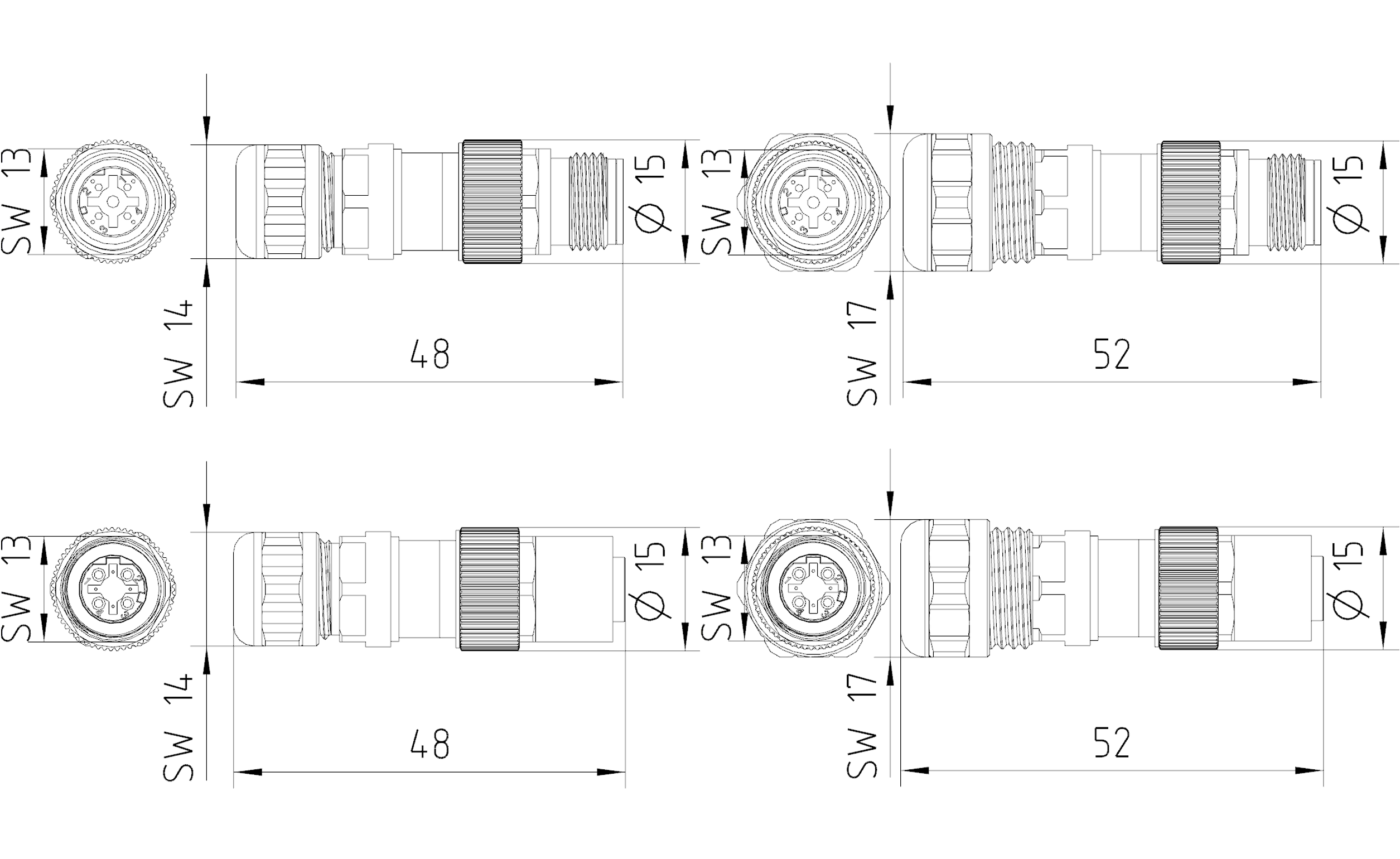

Dimensions
