M12 A-8 90°connector cable gland

incl. VAT zzgl. Versandkosten

M12 A-8 90° connector cable gland

Clear
SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

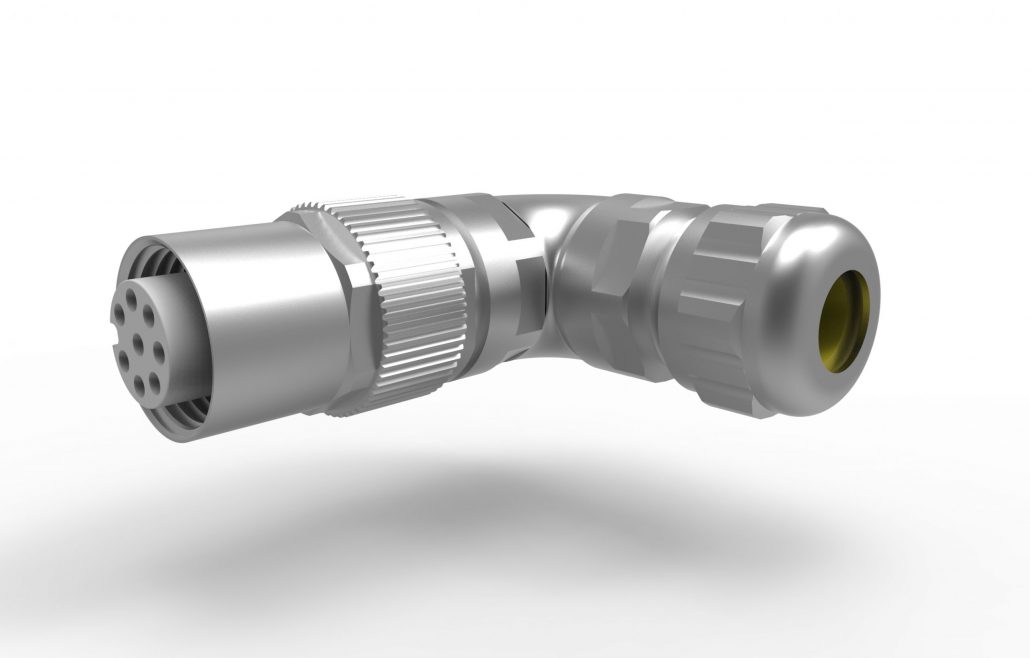

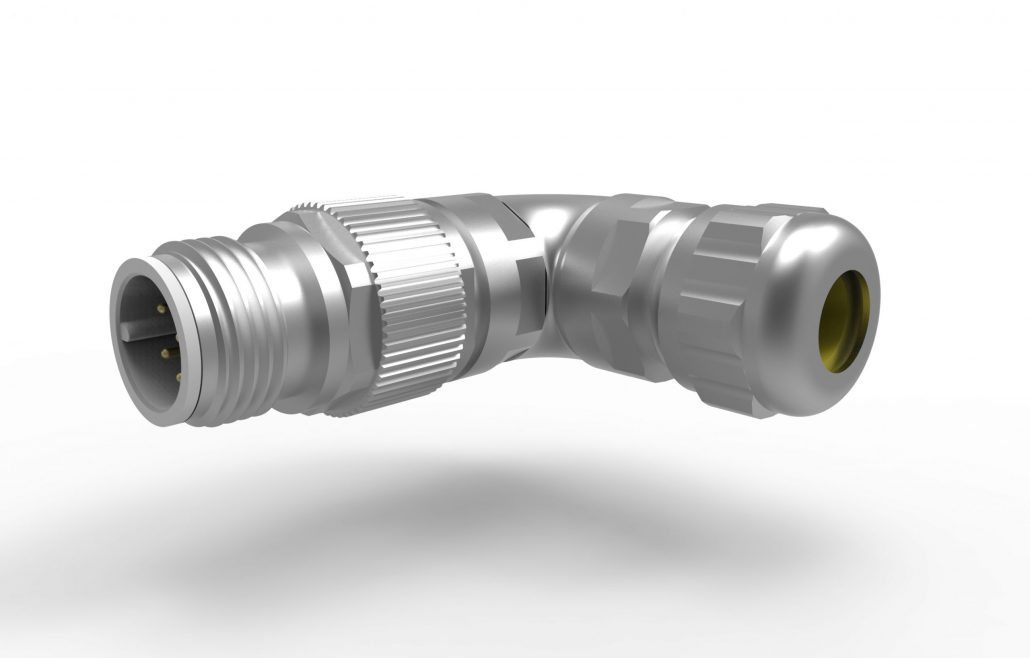

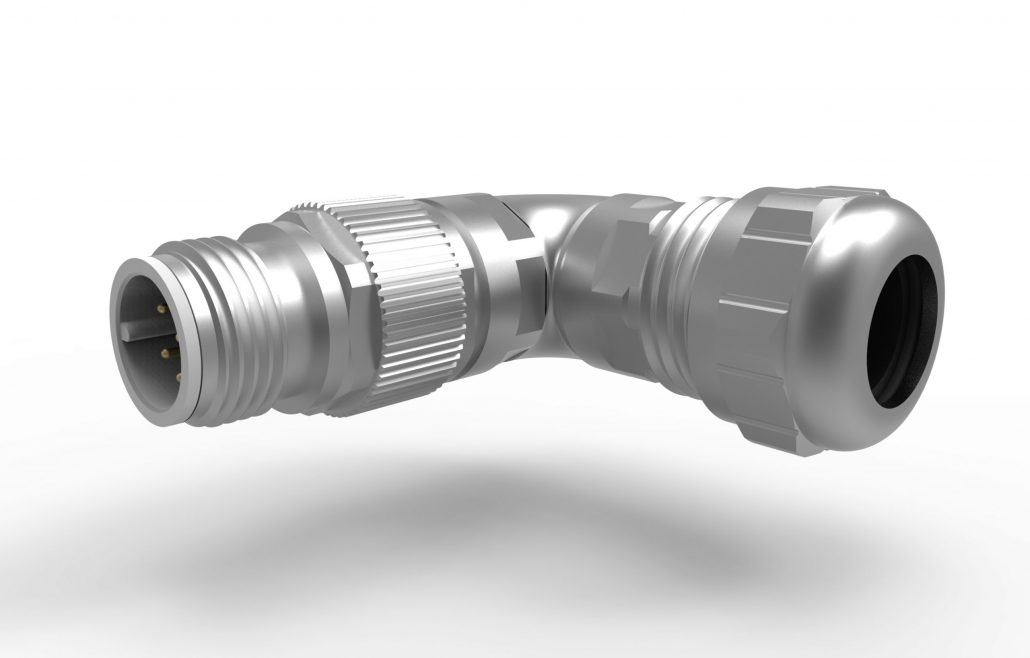

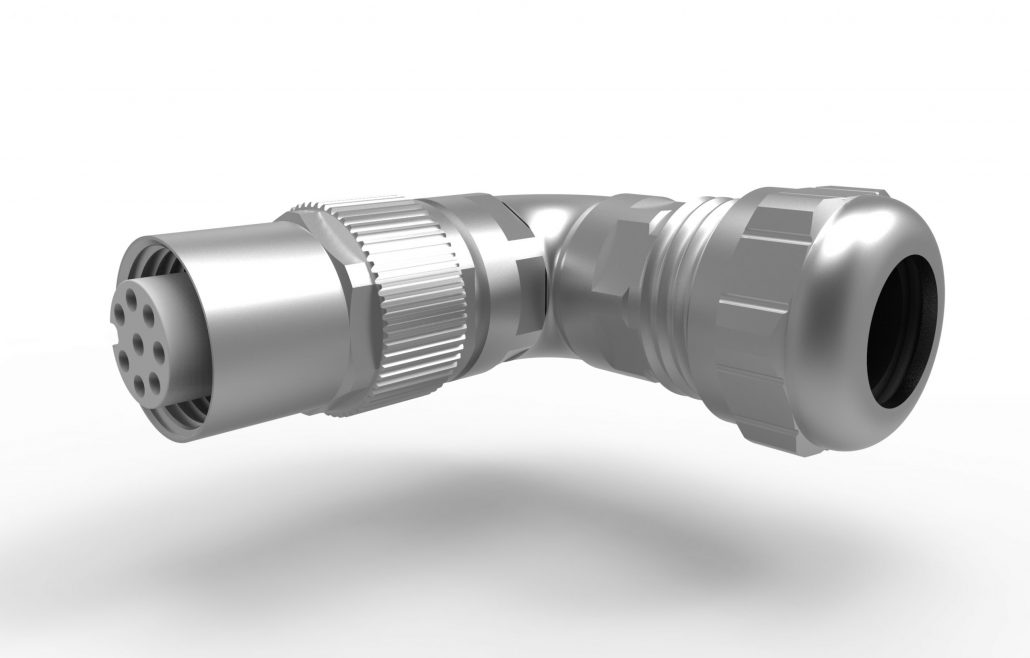

M12 A-8 Ethernet 90° connector  cable gland

Fully shielded and wide cable clamp range  4 – 9 mm

Technical Data

Nominal voltage/ current 30 V / 2 A
Temperature range –40 °C  up to  +85 °C
Degree of protection IP 67 (screw-locked)
Plastics Thermoplast, HL3 acc. to EN 45545-2

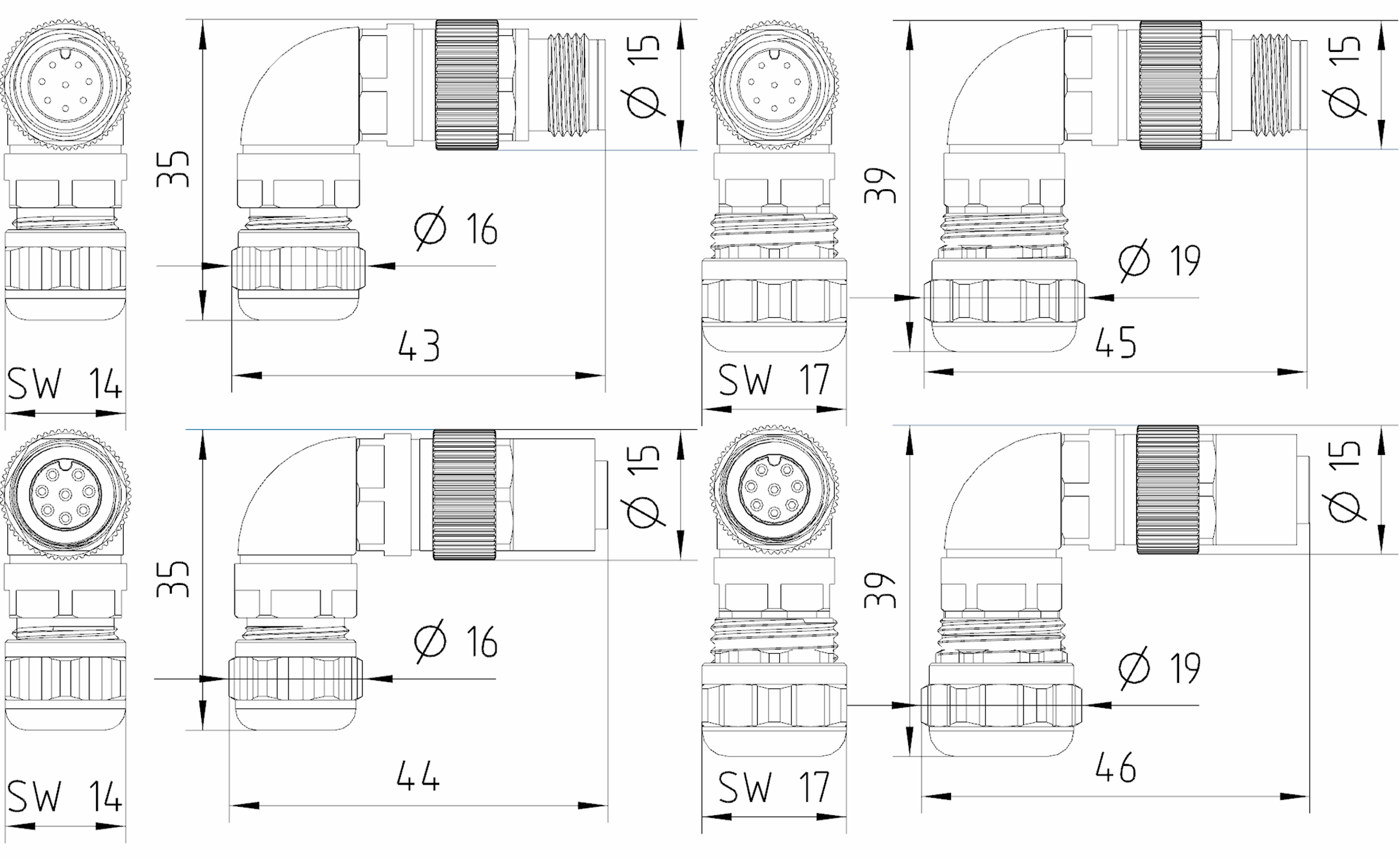

Dimensions
