High power contacts solder pin 90°

incl. VAT zzgl. Versandkosten

S.60, Naming, Kategorie

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

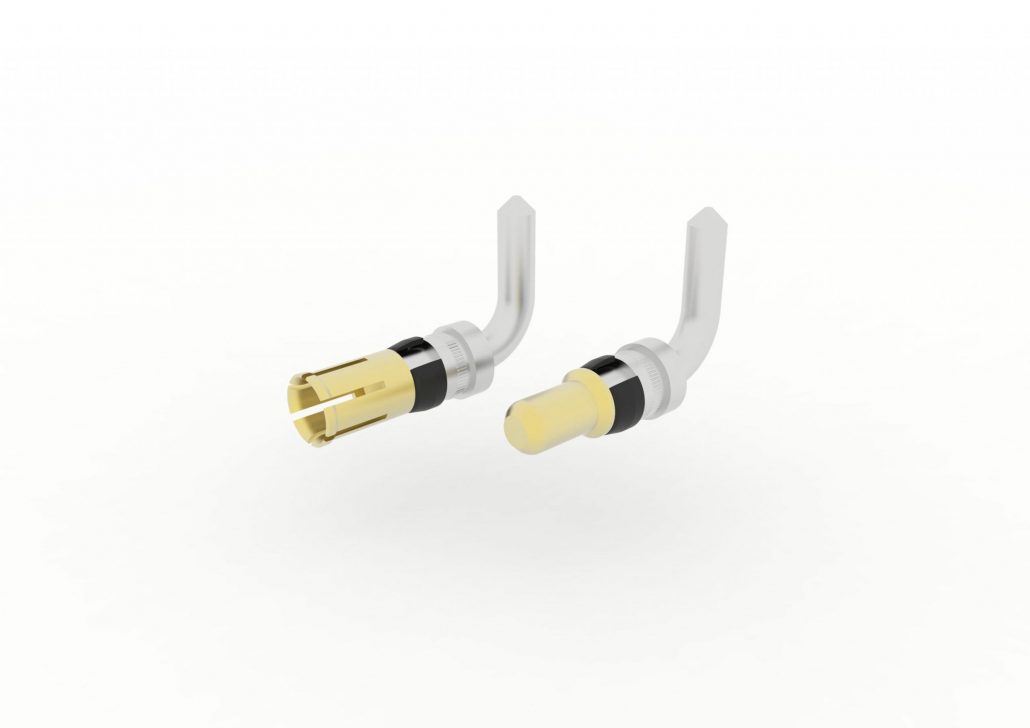

High power contacts solder pin 90°

Machined contacts



Technical Data

Current rating 20 A or 40 A
Resistance ≤ 1 mΩ
Insulation resistance ≥ 10 GΩ
Temperature range -55 °C to +125 °C

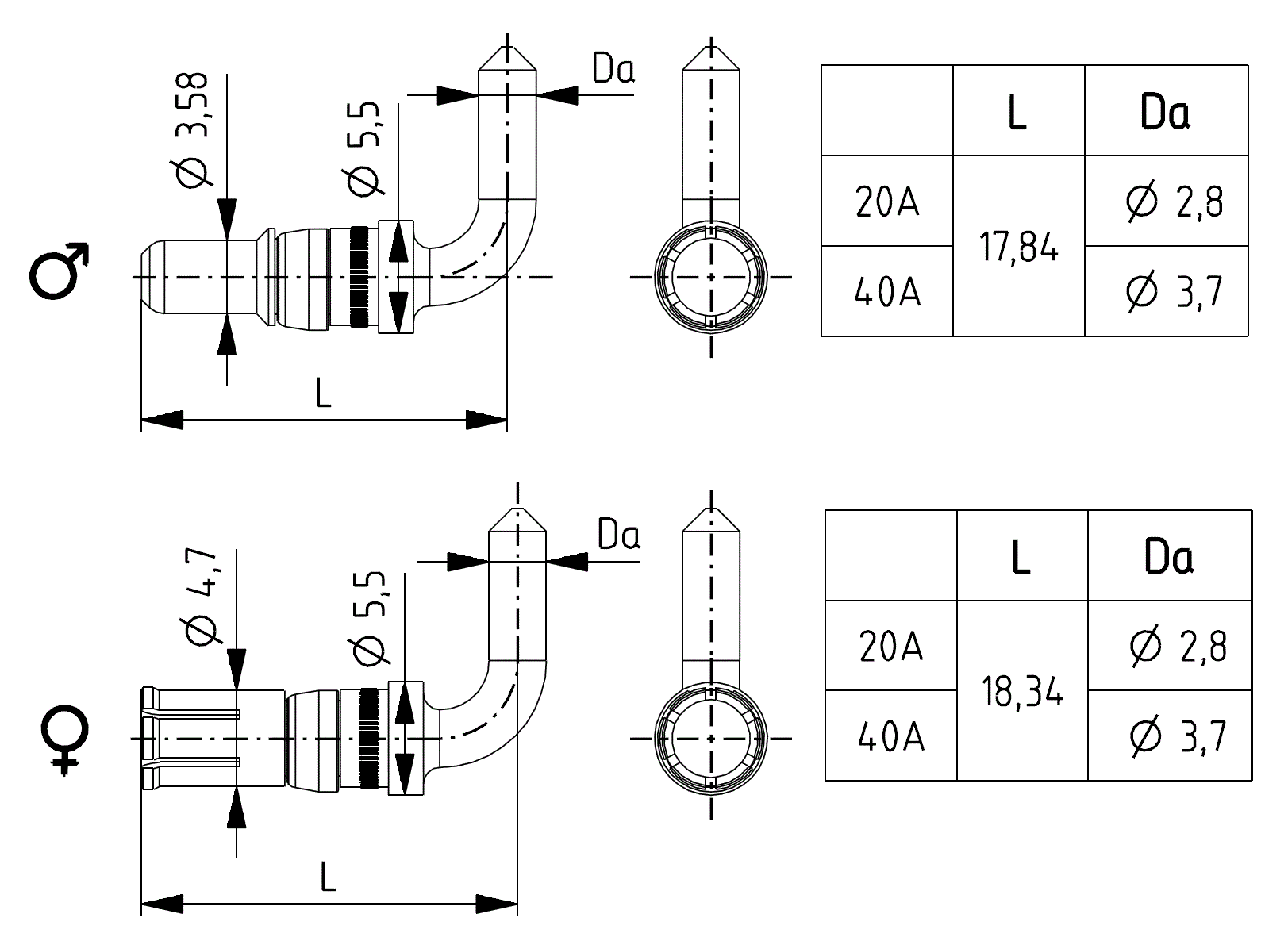

Dimensions

1-P5610G2-DS_01
