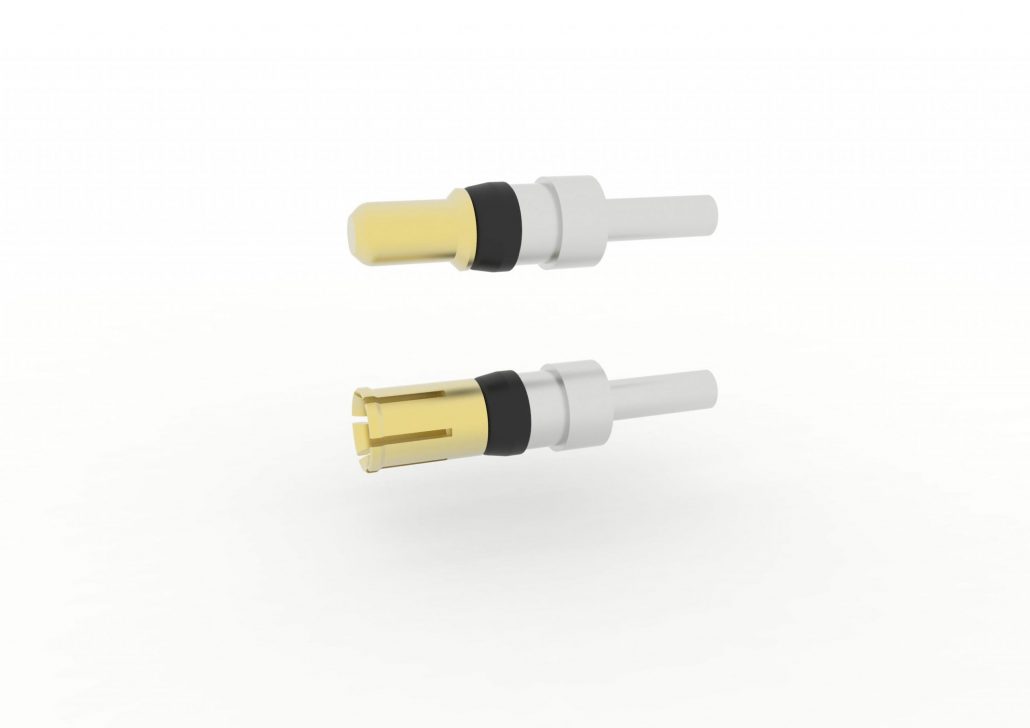

High Power Contacts – Crimp

Operating current

10 A/20 A/30 A/40 A

Wire cross-section 10 A/20 A/40 A

AWG 16-AWG 20/AWG 12-14/AWG 10-12/AWG 8-10

Contact resistance

≤ 1 m Ω

Insulation resistance

10 G Ω

Temperature range

-55° C to +125° C

Quality class

1 = 500 mating cycles

2 = 200 mating cycles

Contacts

Cu-alloy

Contact surface

Fully gold-plated via Ni-barrier

CURRENT RATING

PIN ART.-NO.

SOCKET ART-NO.

AWG

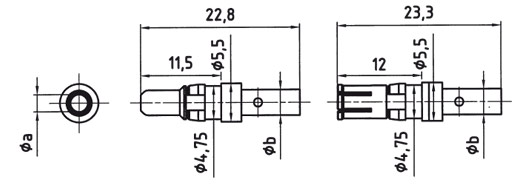

DIMENSIONS

Ø A

Ø B

10 A

P5310G2

P6310G2

1.8

2.6

16-20

20 A

P5320G2

P6320G2

2.7

3.6

12-16

30 A

P5330G2

P6330G2

3.8

4.7

10-12

40 A

P5340G2

P6340G2

4.7

5.8

8-10
