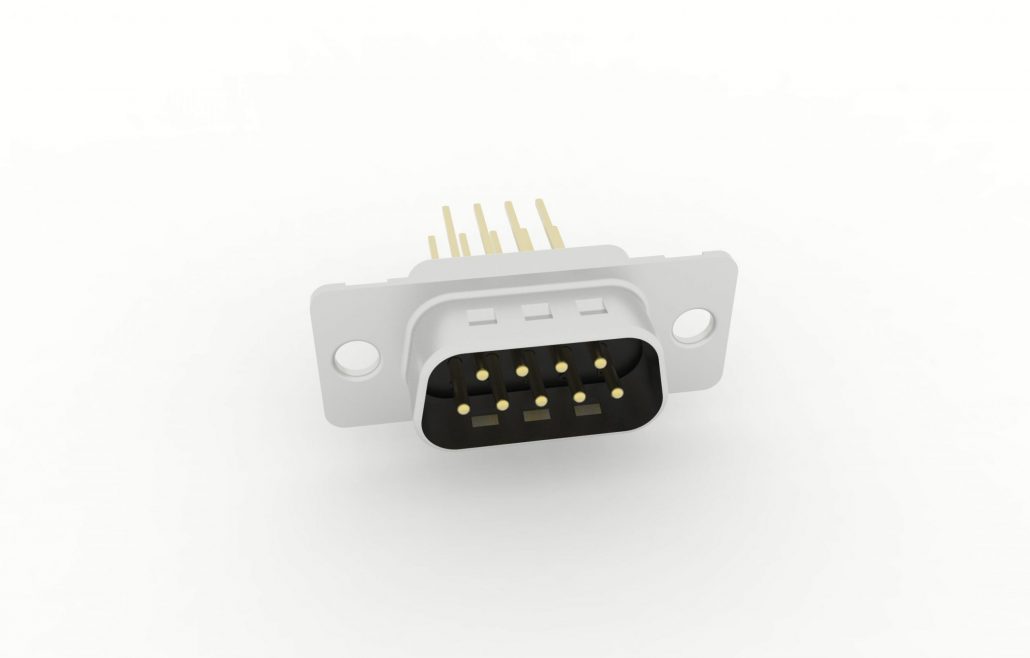

D-Sub Filter Connectors Wire Wrap

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

Wire Wrap contacts

  • High precision milled wire wrap contacts
  • Standard 3 wraps

Technical Data



Technical specifications
Size 9, 15, 25, 37, 50
nominal temperature -25° C — + 85° C
Rated voltage 100 VDC (variation Nr. 01 (2000 pF) = 50 VDC)
test voltage 200 VDC (variation Nr. 01 (2000 pF) = 125 VDC)
rated current 5 A DC max.
insulation resistance 1 GΩ min. @ 25° C

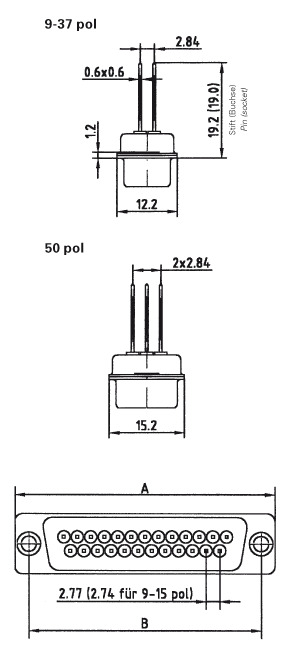

Dimensions

Abmessungen / Dimensions
Polzahl / Polesize 09 15 25 37 50
A (mm) 30,6 39,0 52,8 69,2 66,6
B (mm) 25,0 33,3 47,0 63,5 61,0
