Description
Filter connector
with solder cup
- Chip condenser filtering 1000 pF
- Standard D-SUB dimensions
- Inexpensive edition
- Grade 3
D-Sub Filter Connectors Solder Bucket Connection
incl. VAT zzgl. Versandkosten
Technical Data
| Technical specifications | |
| Size | 9, 15, 25, 37, 50 |
| nominal temperature | -25° C — + 85° C |
| Rated voltage | 100 VDC (variation Nr. 01 (2000 pF) = 50 VDC) |
| test voltage | 200 VDC (variation Nr. 01 (2000 pF) = 125 VDC) |
| rated current | 5 A DC max. |
| insulation resistance | 1 GΩ min. @ 25° C |

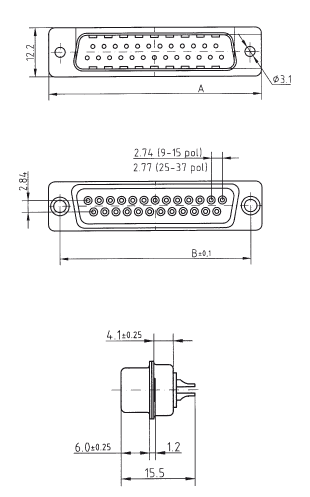

Dimensions
| Abmessungen / Dimensions | ||||||
| Polzahl / Polesize | 09 | 15 | 25 | 37 | ||
| A (mm) | 30,6 | 39,0 | 52,8 | 69,2 | ||
| B (mm) | 25,0 | 33,3 | 47,0 | 63,5 | ||
