Description

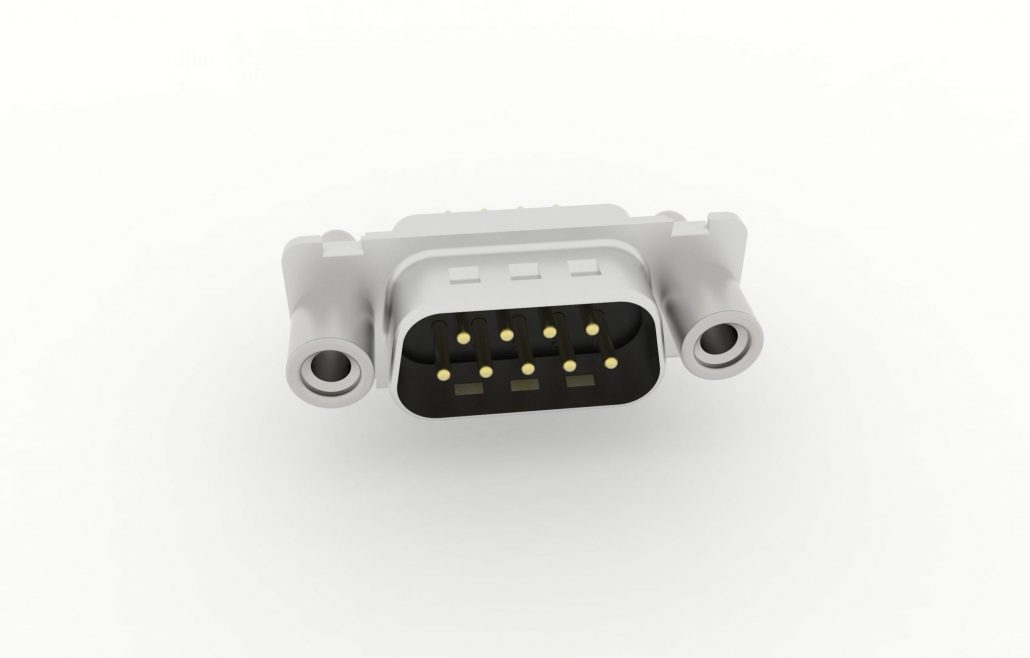

D-Sub Filter Connectors Combilock
D-Sub Filter connectors with straight filtered signal contacts with solder pins in turned high quality version
Combilock with PCB locking clip and threaded rivet UNC 4-40 or M3
Solid metal combilock for secure effective grounding
Secure mounting and compensation of mating forces due to solid combilock design
Capacitance value: 1000 pF (other capacitance values from 2 pF up to 2000 pF upon request)
Selective filtering of each contact upon request possible
Hf-proof sealed metal rear side
High attenuation up to 50 dB
10 0% guaranteed quality due to individual test for every connector

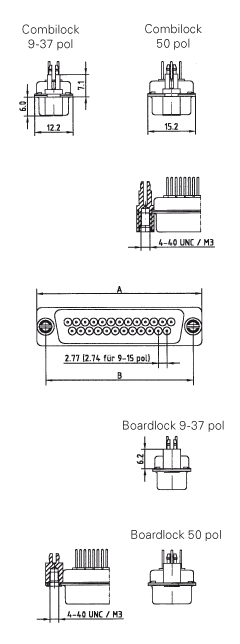

Assembly dimensions of the standard connectors
