Description

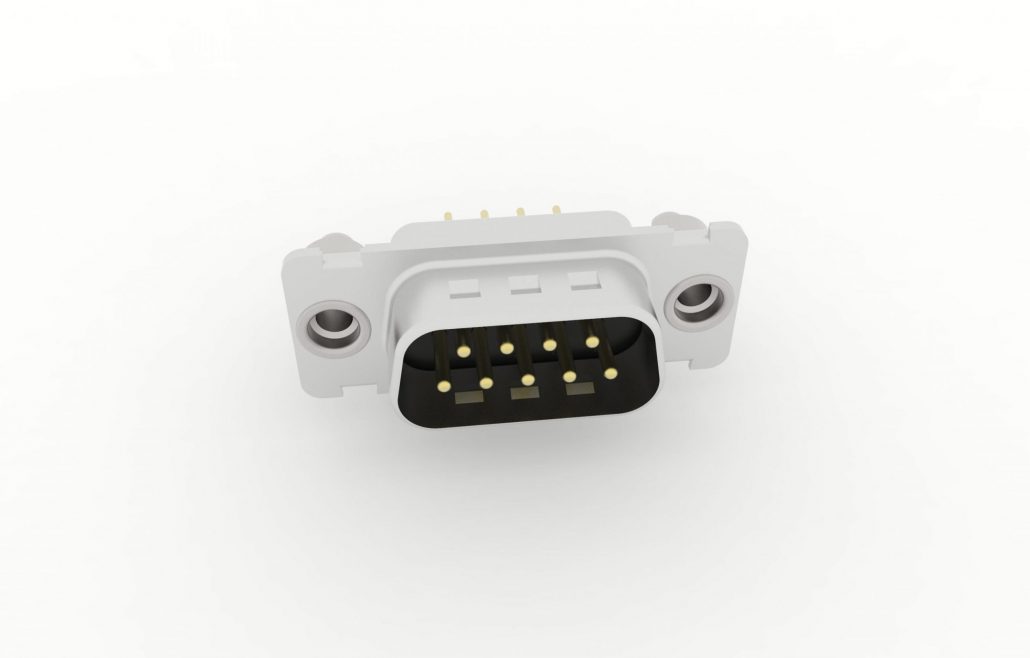

D-Sub Filter Connectors Boardlock
D-Sub Filter connectors with straight filtered signal contacts with solder pins in turned high quality version
Boardlock with PCB locking clip and thread UNC 4-40 or M3
Solid boardlock design for secure effective grounding
Secure mounting and compensation of mating forces due to solid boardlock design
Capacitance value: 1000 pF ( other capacitance values from 2 pF up to 2000 pF upon request)
Selective filtering of each contact upon request possible
Hf-proof sealed metal rear side
High attenuation up to 50 dB
100 % guaranteed quality due to individual test for every connector

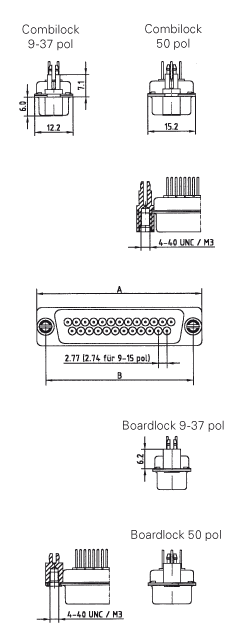

Assembly dimensions of the standard connectors
