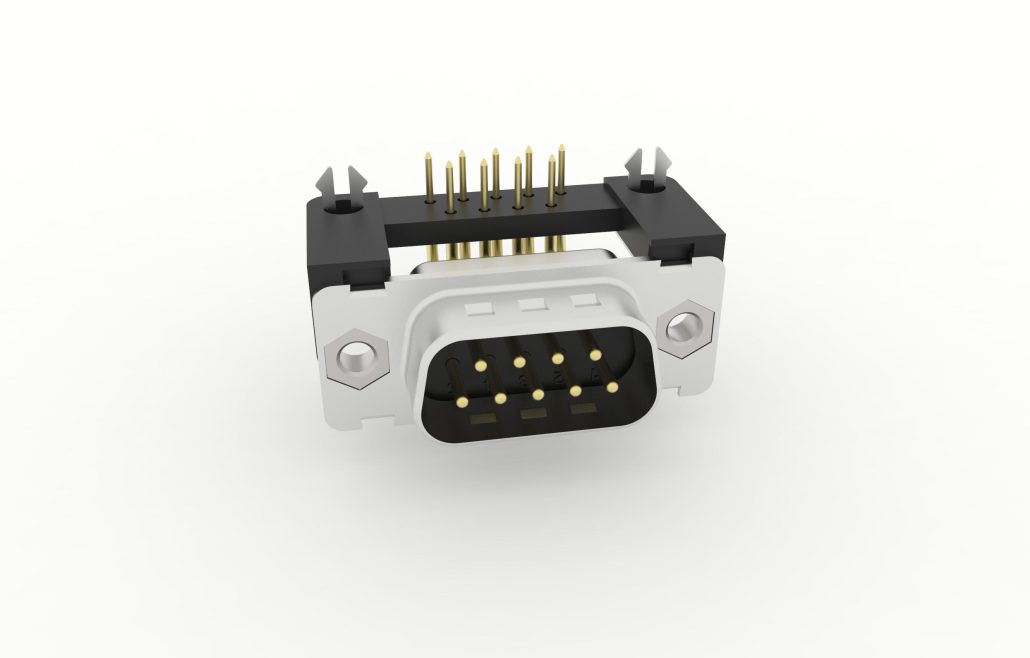

D-Sub Connectors Standard Soldered Connection Angled 8,08mm With Plastic Bracket And Grounding Clip

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

D-Sub connector solder pin 90°

With machined contacts 8.08 mm/.318 inch footprint

  • Installation height 6.3 acc. to US-standard
  • Machined precision contacts
  • Available with plastic bracket and snap-in-clip
  • UNC 4-40 or M3 thread
  • Pre-tinned housing
  • Anti-magnetical housing on request

Technical Data

Current carrying capacity 7 A
R contact /R insulation ≤ 10 mΩ / ≥ 10 GΩ
Test voltage 1 KV / AC
Temperature range  -55° C to +125° C

Dimensions

1-SDT09568G1-DS_01
