D-Sub Connectors Standard Soldered Connection Angled

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

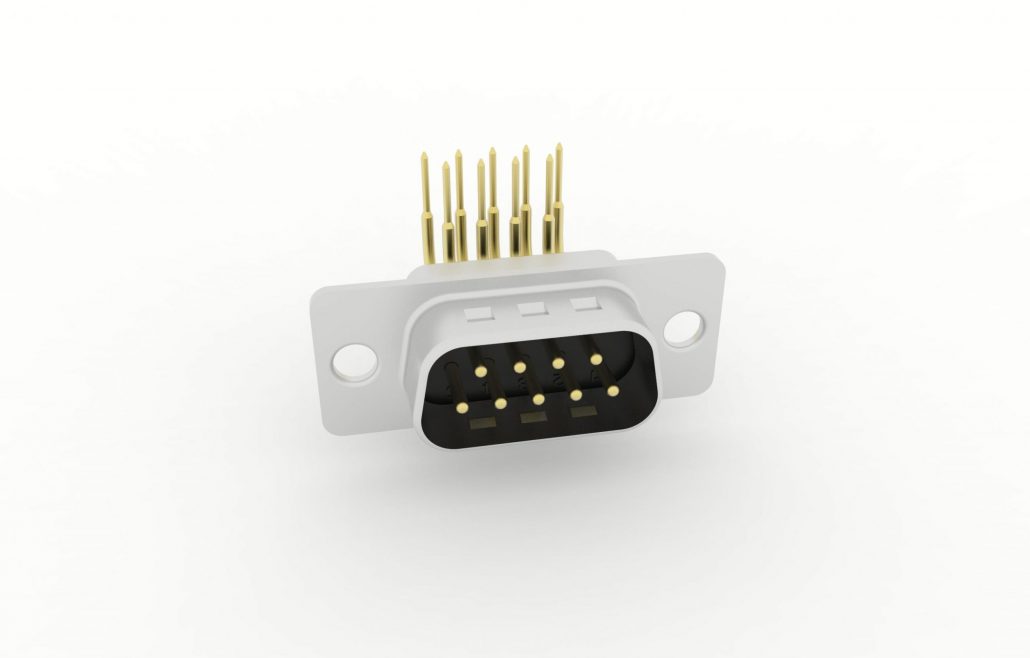

D-Sub connector solder pins 90°

With machined contacts

  • European footprint
  • High precision machined copper alloy contacts
  • Fully gold-plated over Ni
  • Best quality and long lifetime due to specified contact area

Technical Data

Current carrying capacity

 7 A

R contact /R insulation

 ≤ 10mΩ / ≥ 10GΩ

Test voltage

 1 KV / AC

Temperature range

 -55° C to +125° C

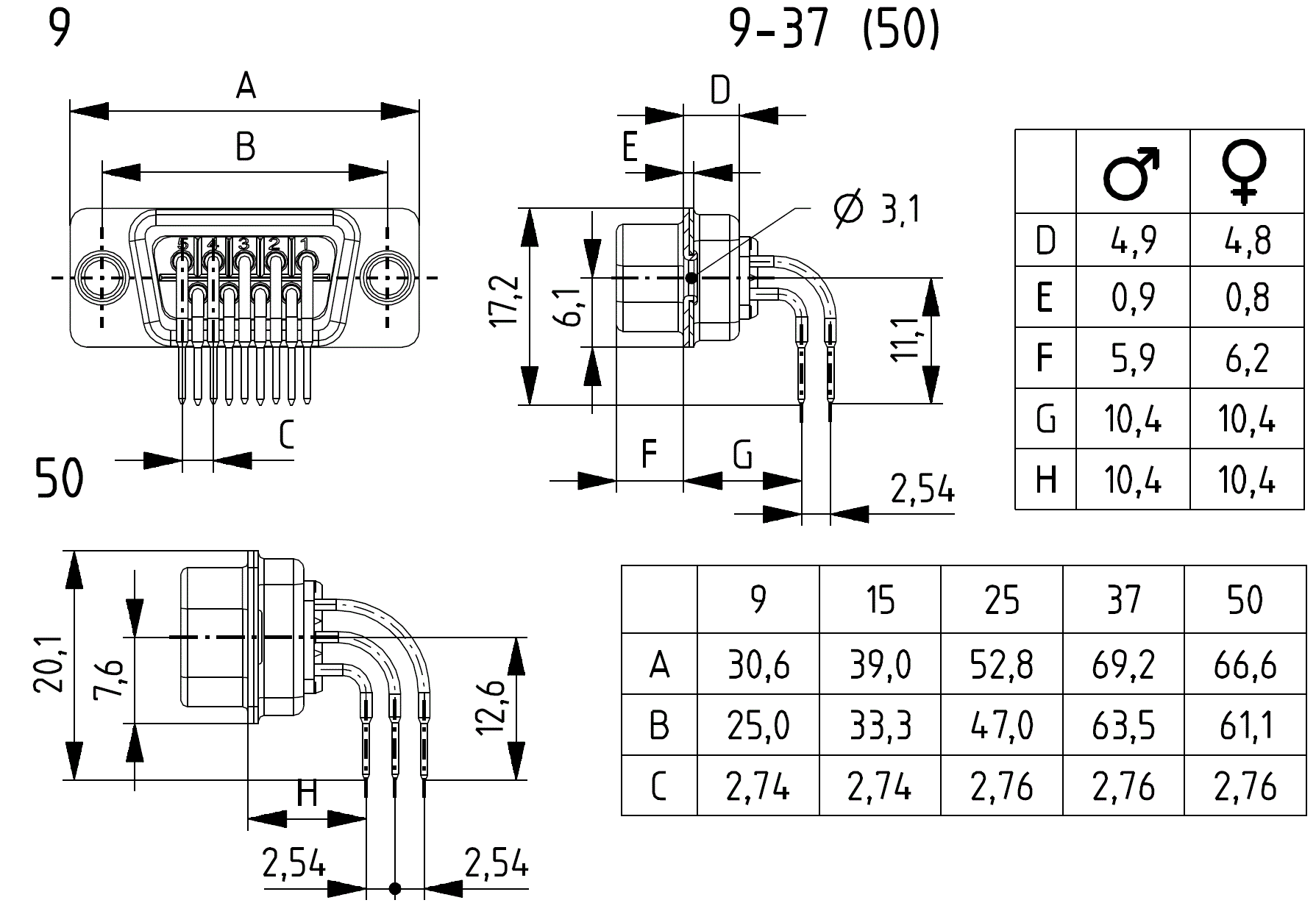

Dimensions

1-SDT0956G1-DS_01
