Description

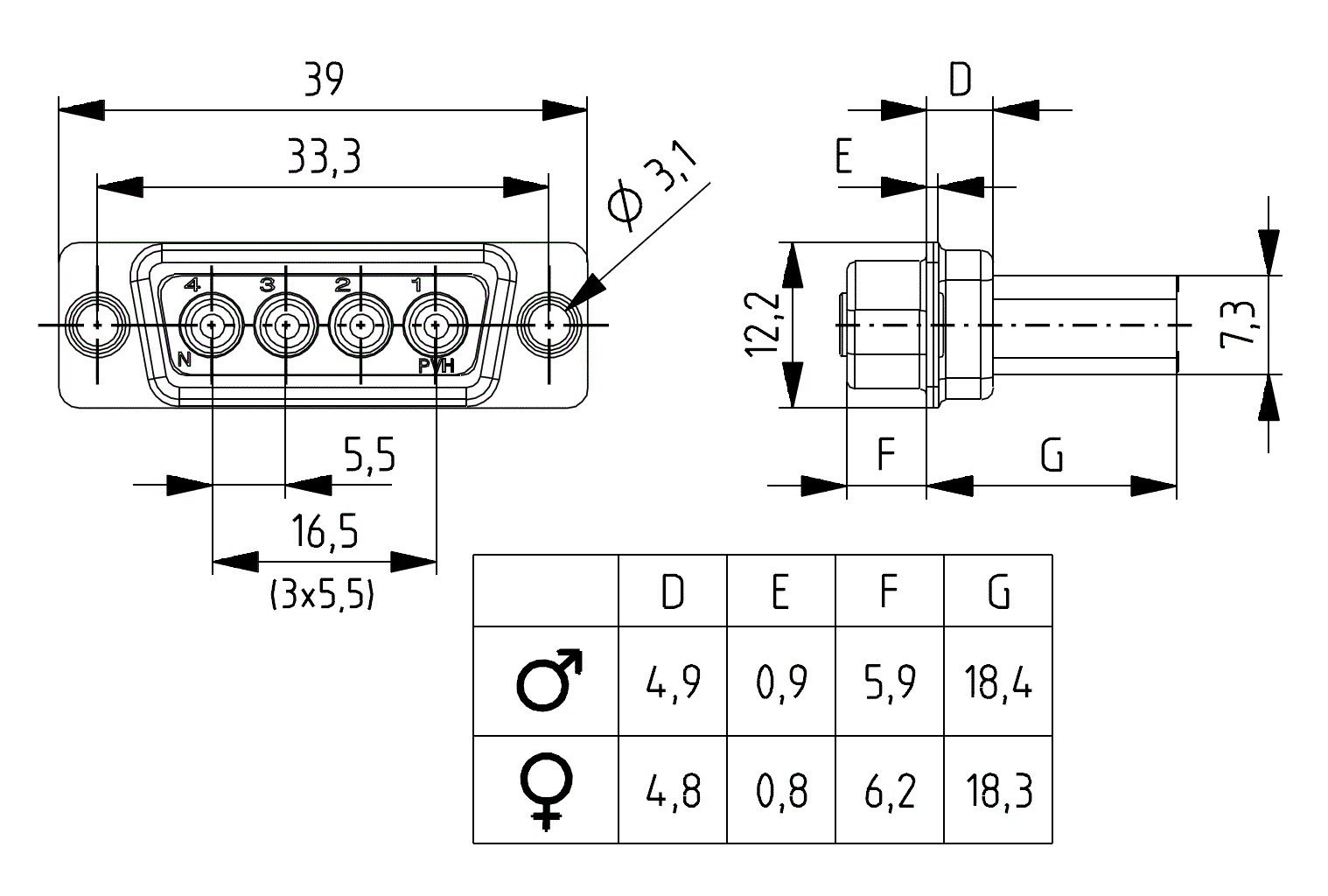

D-Sub 600V power crimp connectors
For machined or stamped contacts
The 600V D-Sub connector series was developed by Provertha especially for compact power applications with easy and fast cable assembly. This is achieved by the special design of new crimp contacts and insulators plus the Quick Lock D-Sub hood with the innovative push-pull locking for the simple one-hand mating.
The 4 pole connector system has touch-proof female connector versions according to VDE 0110. The D-Sub power connectors allow for field assembly direct at factory lines with turned crimp contacts and the according crimp tools. For economical system cable harnessing the use of stamped contacts is recommended.
The 600V connectors are ideal for applications in drives, painting systems and robots.
Technical features
-
- Compact design
- Socket version scoop-proof acc. to VDE 0110
- Cable connector with reliable crimp technology for the conductor connection
- Machined crimp contacts for high current carrying capacity of up to 20A
- Stamped crimp contacts for serial manufacture
- Hand crimp tool and positioner available right away
- Vibration-proof quick-lock with the D-Sub hoods of the QuickLock system
