CAN-Bus M12 Cable assemblies

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

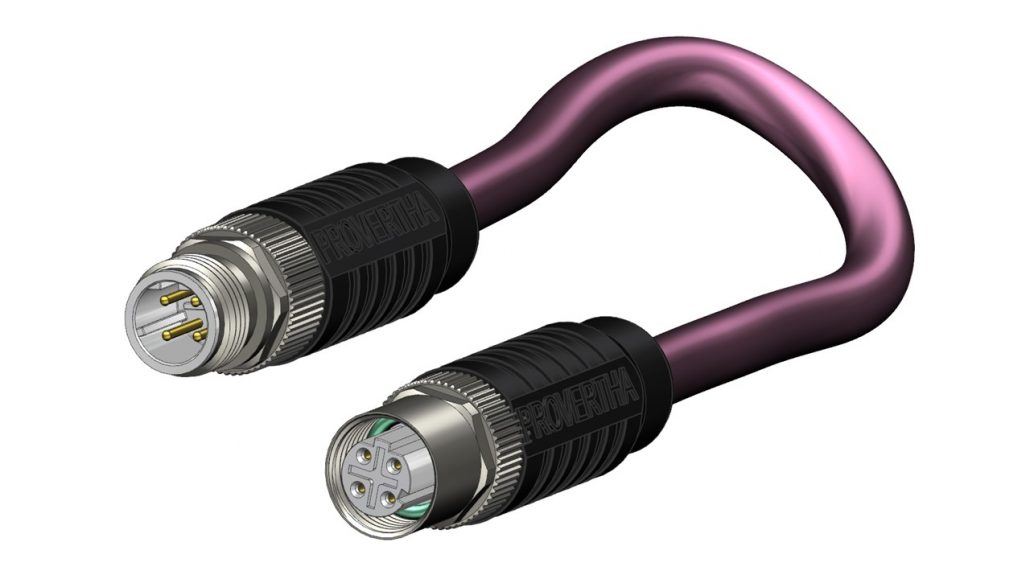

CAN/DeviceNet IP67 M12 Cable assemblies

Reliable and vibration-proof with crimp technology

DeviceNet is a field bus based on CAN which is mainly used in automation technology. The fully shielded M12 CAN/DeviceNet connecting lines with A-coding in protection type IP67 fulfill particularly the requirements for the reliable and interference-free CAN-DeviceNet data transmission. This is achieved due to a safe signal and shield contacting through crimp technology. Due to their vibration- and torsion-proof cable strain relief and the full-metal housing, these connecting lines are ideal for the demand for a high performance in a rough environment.



Technical features

  • Compact outer dimensions
  • Highly flexible, robot-suitable UL-line for high requirements
  • M12 locking nut with combined knurled screw with hexagon for tightening with pre-defined torque

Technical Data

Technical data
Connector M12 according to IEC 61076-2-101
Coding pole number A-5
Current carrying capacity 4 A
Rated voltage 50 V AC
Resistance ≤ 5 mΩ
Insulation resistance ≥ 100 MΩ
Connector type single conductor Crimp snap-in
Wire-cross section AWG 20 – 24
Cable strain relief and cable shield connection Crimp flange system with crimp insert + crimp sleeve
Protection type IP 67 (screw-latched only)
Temperature range –20° C bis +70° C
Mechanical lifetime ≥ 200 mating cycles
Materials
Housing Cu-alloy nickel-plated
Insulator + contact retainer Thermoplast with I2/F2 acc. to NFF 16-101 and 102
Material Cu-alloy
Surface Ni/Au
Handle sleeve TPE with S3 and SR2 according to DIN 5510-2
Seals Elastomer
Cable Highly flexible robot-suitable UL CAN-DeviceNet-line
Cable construction 2x 0,24 + 2x 0,38
Cable diameter 6,6 ± 0,5 mm
Colour Red-purple (RAL 4001)

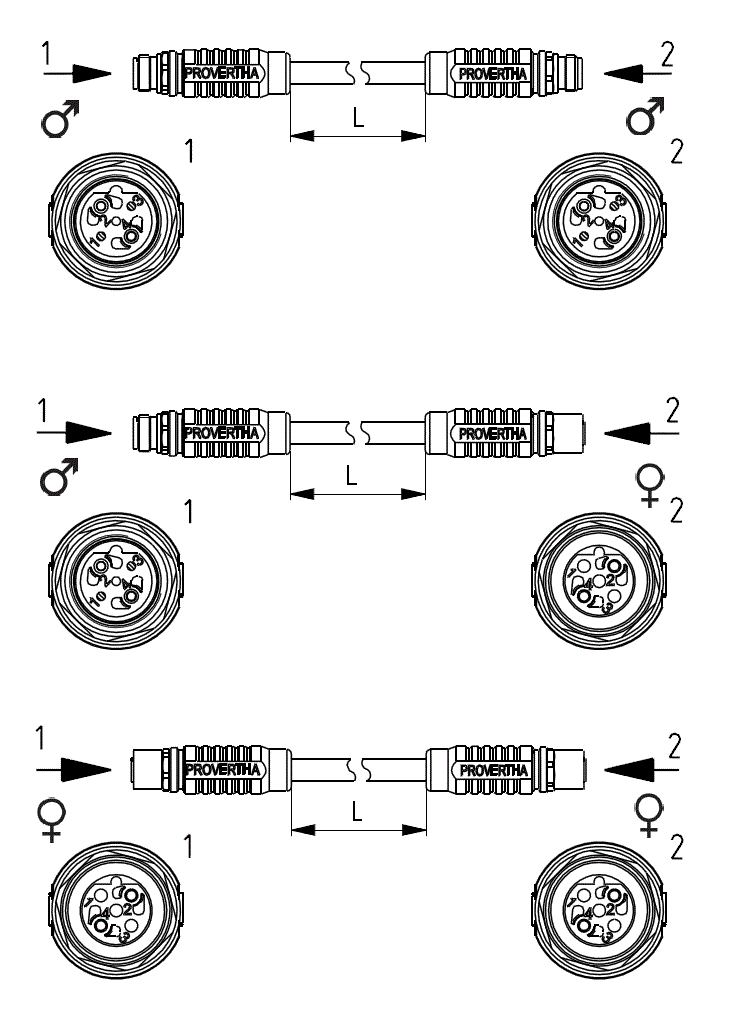

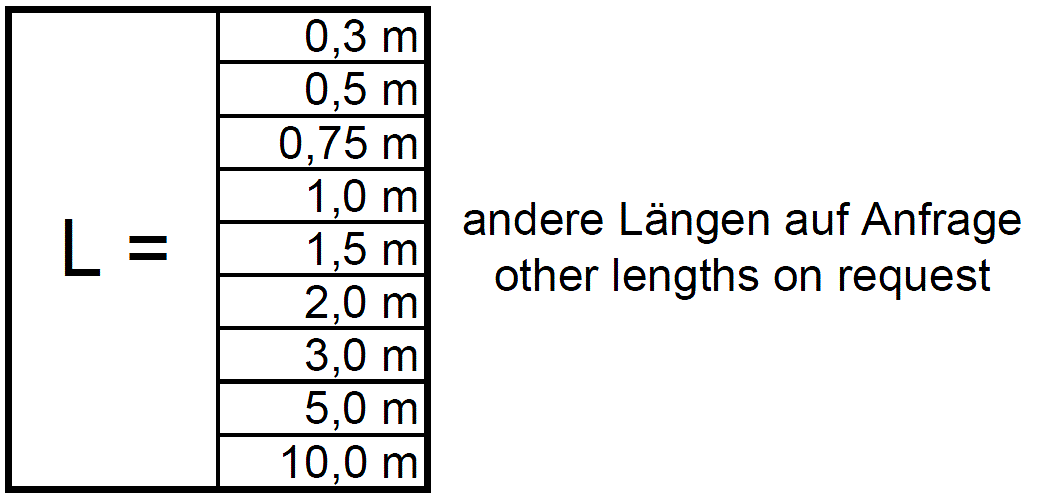

Dimensions

Downloads

DS_I60_01
