Description

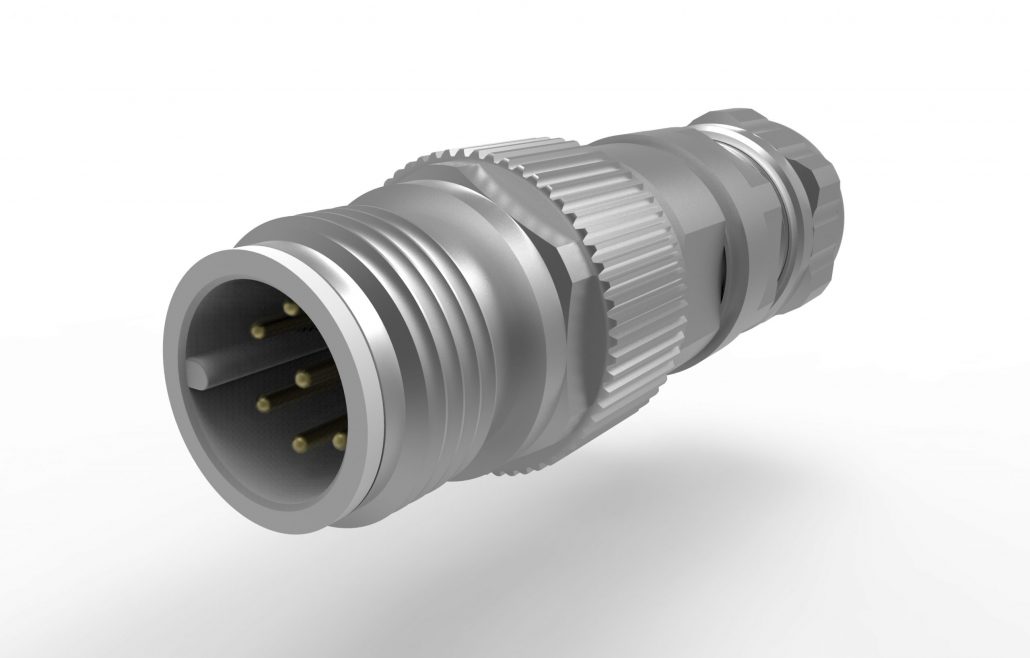

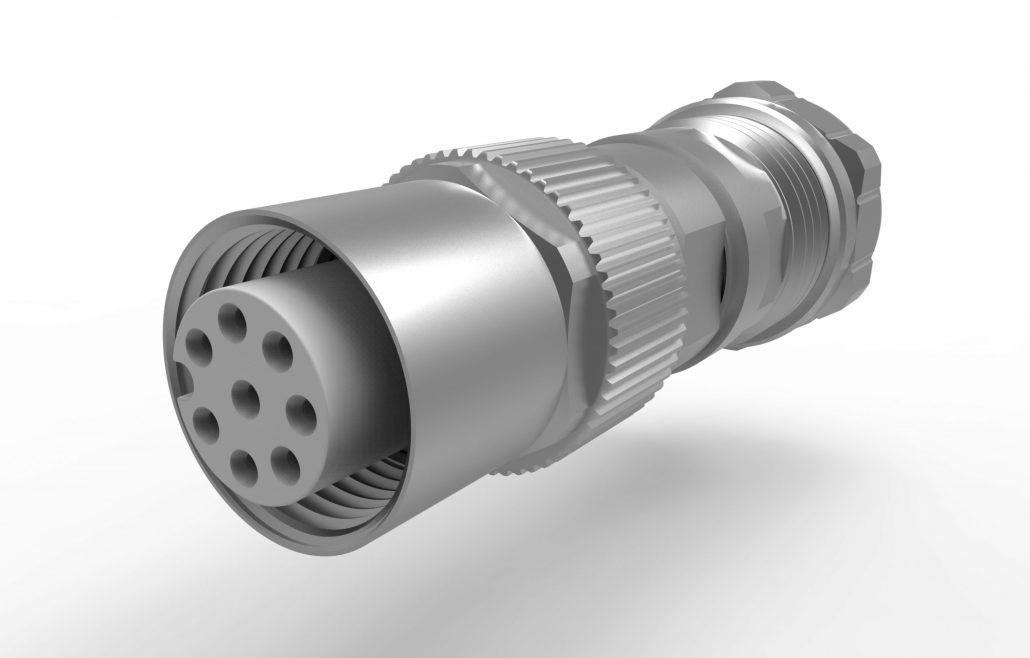

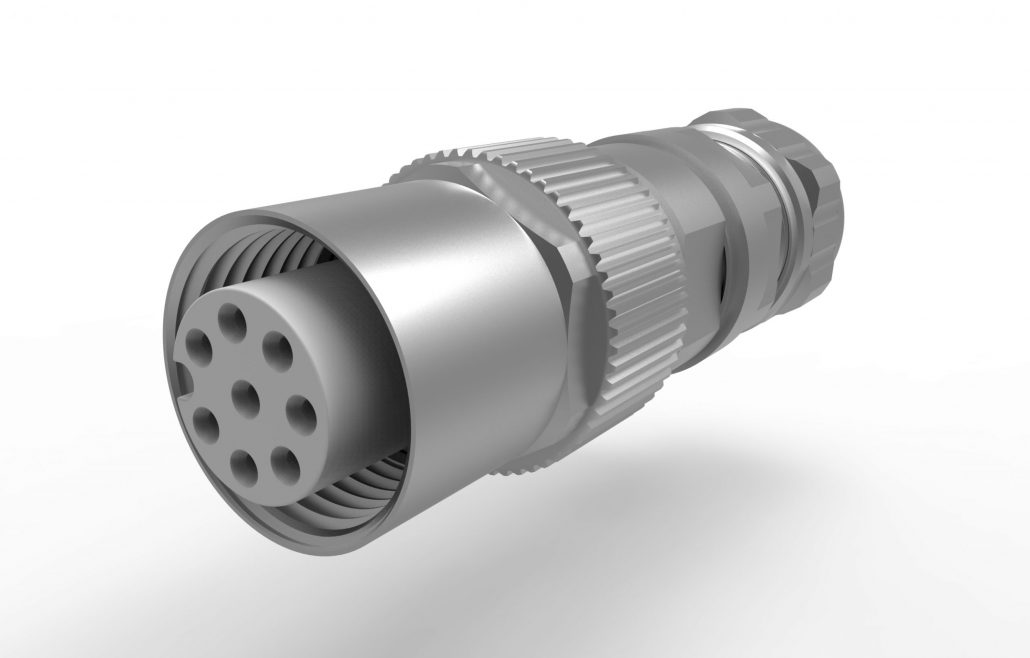

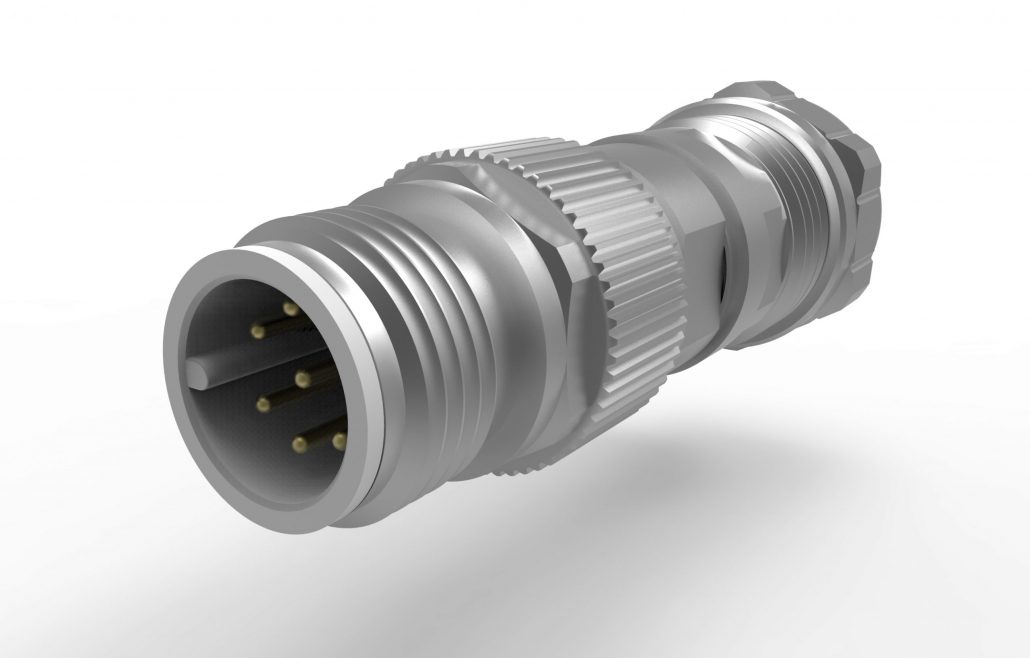

M12 A8-coded Ethernet connector cable gland

Fully shielded and wide cable clamp range 4 – 9 mm

• The reliable M12 Ethernet field connection
• Functionally reliable error-free data transmission for demanding requirements
• High security in the network with turned crimp contacts
• Safe strain relief and shield connection with cable gland
• Large cable clamping range of 4 – 9mm / 4 – 6.5 and 5.5 – 9 mm
• Compact dimensions for applications with little installation space
• Full metal housing protects against interference and in harsh environments
• M12 coupling nut with hexagonal combination knurl for defined tightening torque
• Certified plastics acc. to EN 45 545 for railway applications
• Easy installation due to few individual parts
• The crimp contacts AWG 22 – 28 must be ordered separately
• Bulk packaging with 50 pcs as loose items in poly bags
• Item No. for bulk packing: Index: -050 after item no., eg. For example, 42-800123-050
