Description

Cable clamp (Series 58 DC)

The cable clamps with a wide cable clamping range allow the application for any cable version
like drag chain version with big diameter.

Technical features

• Secure constant shield connection due to solid version
• Secure shield transfer to hood due to special sesign
• Easy cable harnessing due to pre-assembly outside the hood

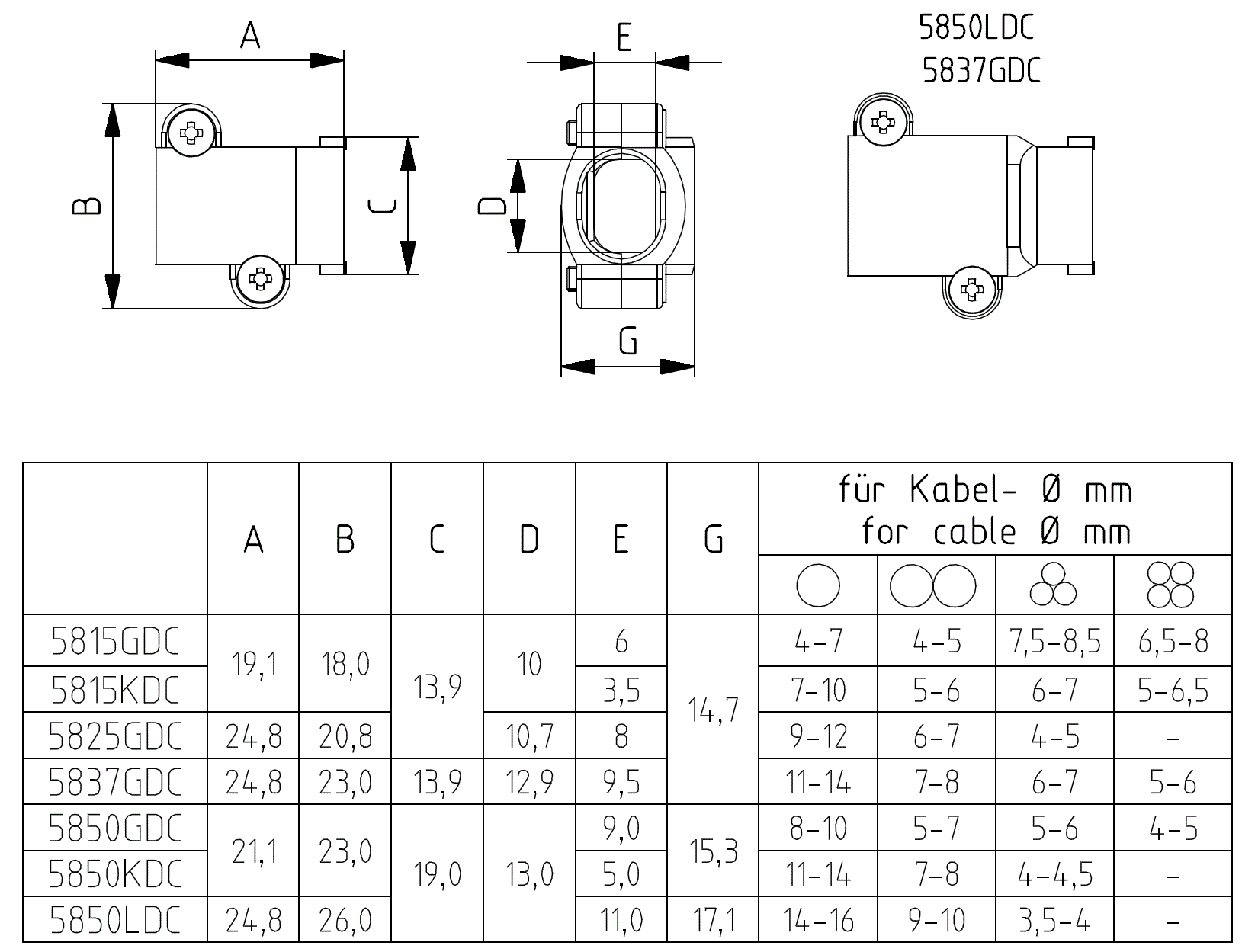

• Cable clamp versions:
  9-37 pole hoods: 5815KDC/5815GDC/5825 GDC/5837 GDC
  50 pole hoods: 5850 KDC/5850 GDC/5850 LDC
• Cable diameter:               9-37 pole: 4-14 mm
                                                  50 pole: 8-16 mm
• Optionally, a few cables can run through one cable clamp
