57 Stud Hood Metallized With Screw Locking

incl. VAT zzgl. Versandkosten

S.95, Naming, Kategorie, 57

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

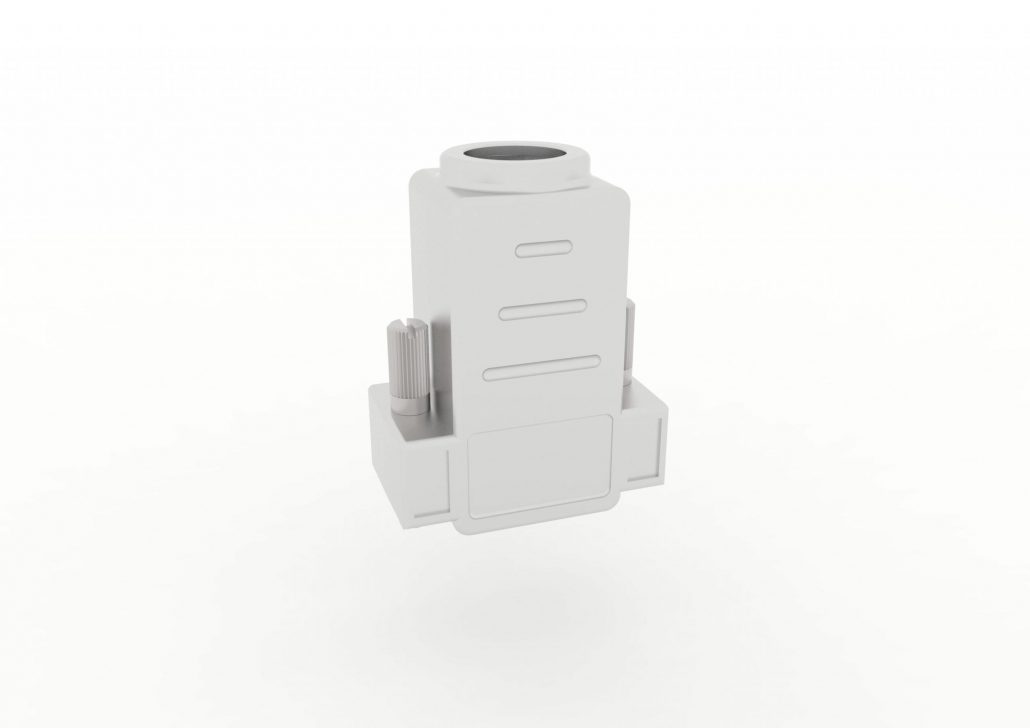

Stud hood (series 57)

metallised with sidewards screw latching

  • Minimum mounting time due to clip or pin connection between the two hood parts
  • Suitable for ribbon cable connectors
  • Made from high-quality ABS plastics, flame-retarding according to UL 94 V-0
  • Available with metallised or black surface
  • UNC 4-40 latching screw

Technical Data

General
IP Rating: IP 20
Cable diameter: 5-11 mm
Temperature Range: -25°C bis +85°C
Tightening torque max. 35 Ncm
Material
Hood: Pmastic ABS UL 94-V0
Colour: Nickel plated



Dimensions

Abmessungen / Dimensions
Artikel /
Part		 Polzahl /
Pole Size		 A B d
57 090 M 09 (mm) 31,7 38,0 10,0
57 150 M 15 (mm) 40,0 40,0 11,0
57 250 M 25 (mm) 53,0 40,0 11,0
57 255 M 25 (mm) 53,5 40,0 11,0
