Description

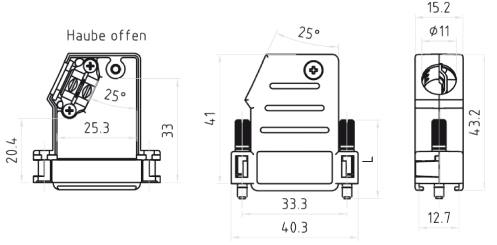

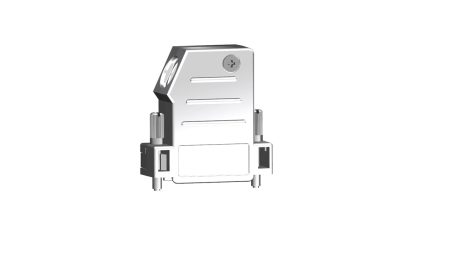

Compact metallized hood with sidewards cable exit and screw locking (Series 47155)
D-Sub hood size 2 to be used with:
- D-Sub 15 pol.
- D-Sub HD 26 pol
- Mixed Layout 3W3
- D-Sub Power 600V, 4W4
Technical characteristics:
- Cable outlet 25°
- Easy assembly due to shell snap in design and premounted knurled locking screws
- Intergierted cable clamp
- Integrierted dust protection shoulder
- Exceltent shielding eficiency
- Assembly grid in rack or device 3 TE (15.24 mm)
- Multi opening possible
