47 Hood Plastic Sidewards Cable Exit With Screw Locking

incl. VAT zzgl. Versandkosten

S.93, Naming, Kategorie, 47

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

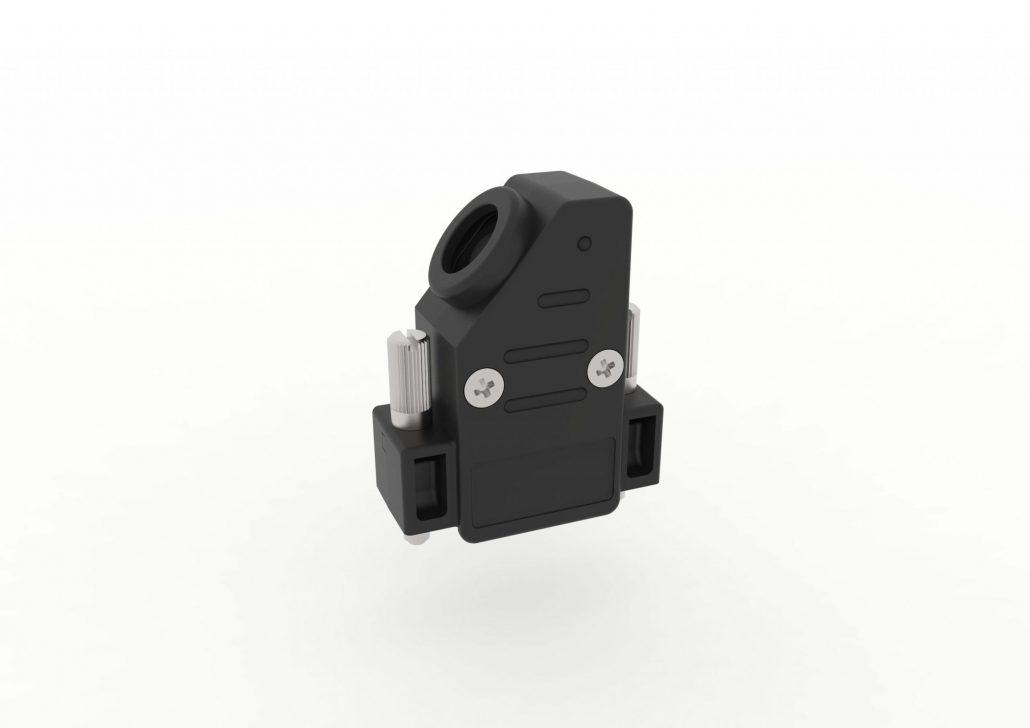

Plastic hood (Series 47)

Black plasic hood with screw locking and side cable output

  • Two piece hood with side cable output
  • Made from black ABS quality plastic UL 94V-0 rated
  • Posibility to insert  in 3 TE grid
  • Integrated dust protection shoulder
  • UNC 4-40 locking screws
  • multi opening possible



Technical Data

General

IP protection class

IP 20

Cable diameter:

5─11 mm

Temperature range:

-20°C bis +90°C

Tightening torque (cable clamp screws):

max. 30 Ncm

Tightening torque (cover screws):

max. 20 Ncm

Material:

Hood:

ABS UL 94-V0

Colour:

Black



Dimensions

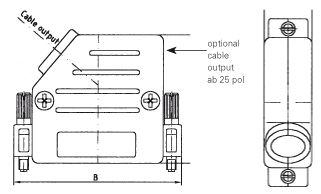

Abmessungen / Dimensions
Polzahl /
Pole Size		   09 15 25 37 50
mm A 37,0 37,0 41,0 41,0 41,0
B 31,5 40,0 53,5 70,0 67,8
C 15,2 15,2 15,2 15,2 18,2
Ausgang /
Cable Output		 130° 1 1 1 1 1
115° – – – – –
90° – – 1* 1* 1*
Max. Kabeldurchmesser
bei interner Kabelklemme /
max. cable diameter, mm		 8,5 8,5 11,0 11,0 11,0
