Description

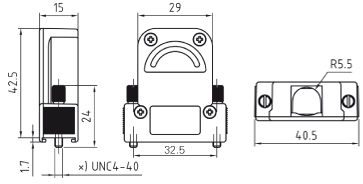

Compact D-Sub 360° EMI/RFI full-metal hood with knurled screw locking (series 119DC)

Flexibility at the cable connection due to 3 strain relief versions and torsion-proof version

Thanks to its low installation depth of 42 mm, this D-sub hood is predestined for wide-ranging compact applications. Further characteristics are the easy installation and the knurled screw locking. 360° EMI/RFI-crimp flange system for applications with high EMV and shielding requirements. The hexagonal crimp of the crimp flange system also secures the torsion and vibration proof strain relief of the cable in rough environmental conditions. The large cable outlet allows the connection of cables with an outer diameter of up to 14 mm. The version with an integrated cable clamp and safe strain relief due to massive metal strain relief bracket is particularly compact. The hoods can be obtained as a complete set including knurled screws or packed as a single component for medium-sized and large series.
