117DCN/147DCN Hood full metal Ni-plated cable outlet 180° und 135°

incl. 19% VAT zzgl. Versandkosten

Category: Full-metal hoods Nickel-plated

Description

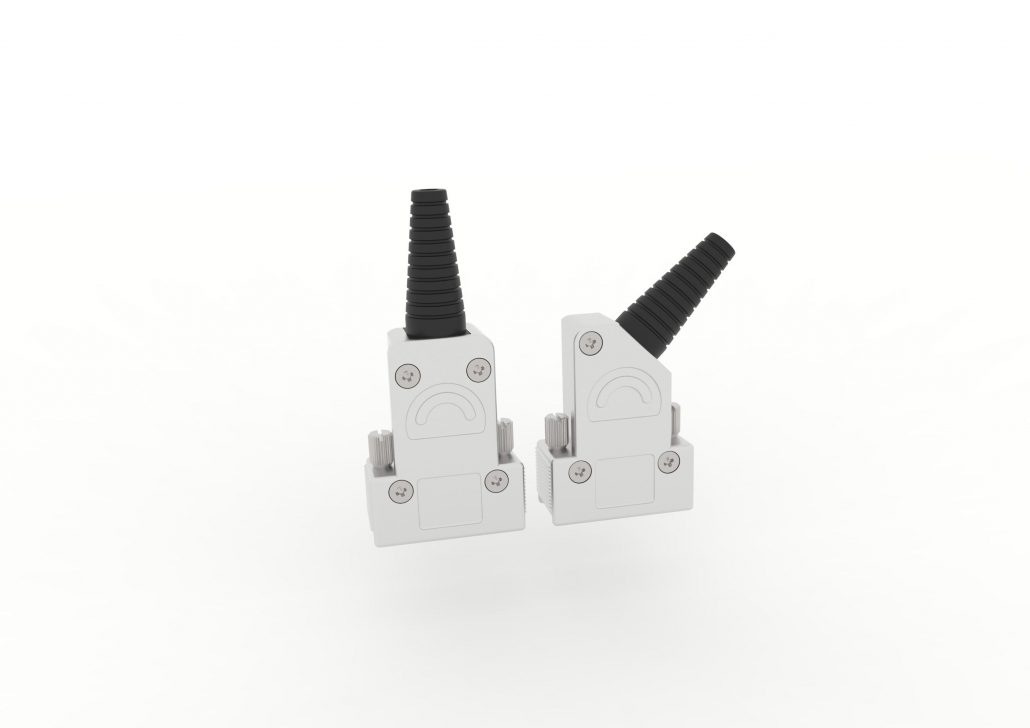

Ni-plated full-metal hoods (series 117DCN/147DCN)

3 cable strain relief versions and screw lock

Technical Data

Cable diameter internal	9: 4-10 / 15-25: 4-12 / 37-50: 4-15
Cable diameter external	9 -25: 4 – 14 / 37-50: 4 – 16
Temperature range:	-55 °C to + 90 °C

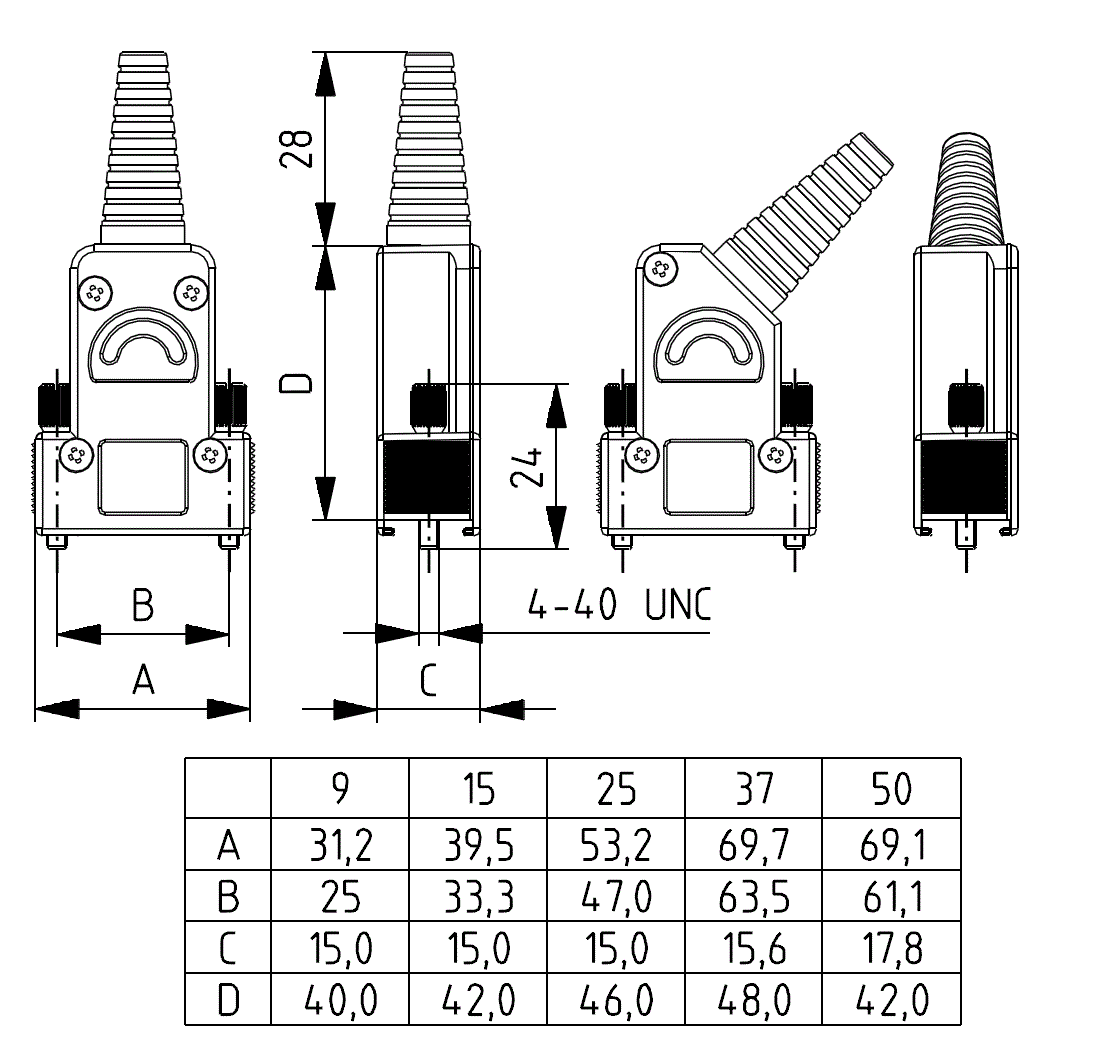

Dimensions

2-117092DC25001-DS_02
