07 Hood Metallized for Clip and Slide Locks and up to 3 Cable Entries

incl. VAT zzgl. Versandkosten

SKU: Bitte wählen Sie eine Variante / Please select a variant / Choisissez une variante Category:

Description

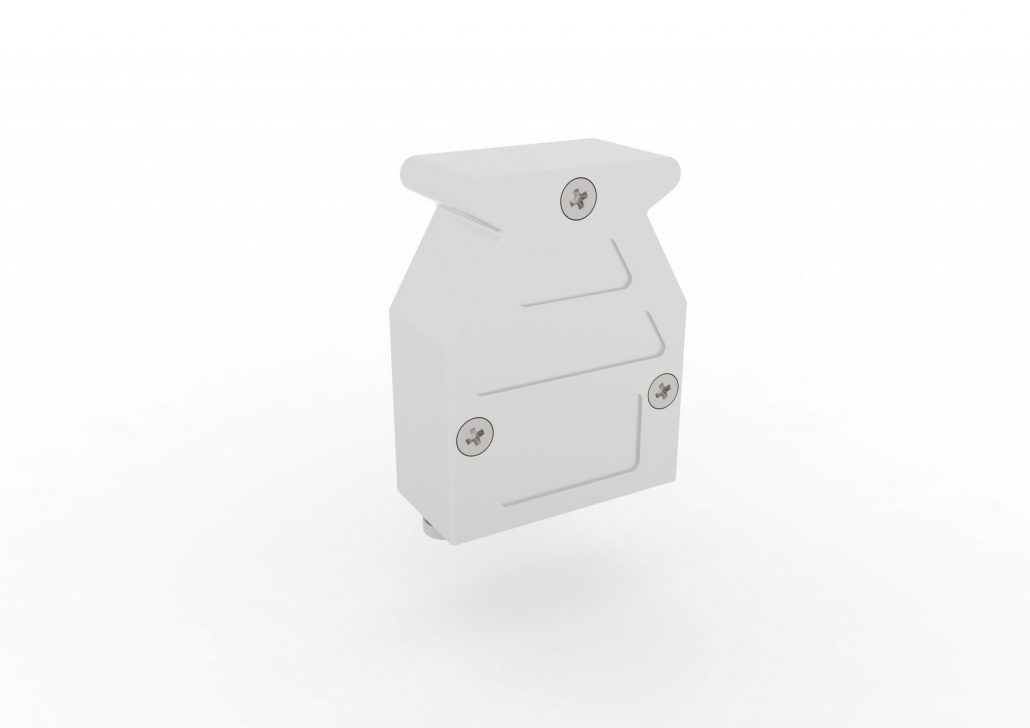

Plastic hood (series 07)

Metallised for clip and slide latching with sidewards cable outlet

  • Two-part hood with 3 cable outlets (9-pole 2 cable outlets)
  • Made from high-quality ABS plastics, metallised
  • Large cable interior space
  • Multi-opening possible

Technical Data

General
IP Rating: IP 20
Cable diameter: 5-11 mm
Temperature Range: -25°C bis +85°C
Tightening torque max. 35 Ncm
Material
Hood: Plastic ABS UL 94-V0
Colour: Nickel plated

Dimensions

Abmessungen / Dimensions
Polzahl /
Pole Size		 09 09** 15 25 37 50
  B 31,2 31,2 39,4 53,4 69,4 66,8
C 15,4 15,4 15,4 15,4 15,4 17,8
Kabelausgang
Cable output		 180° – – 1 1 1 1
120° – 1 1 1 – –
120° 1* – 1* 1* 1* 1*
Max. Kabeldurchmesser bei interner Kabelklemme
max. cable diameter, mm		 8,5 8,5 8,5 11,0 11,0 12,0

1* – für Nutzung des Augang Wandung entfernen / for use of cable exit wall needs to be eleminated
9** – für/for 07095BT001 & 07095M001 (größerer Innenraum / extended inner space)
